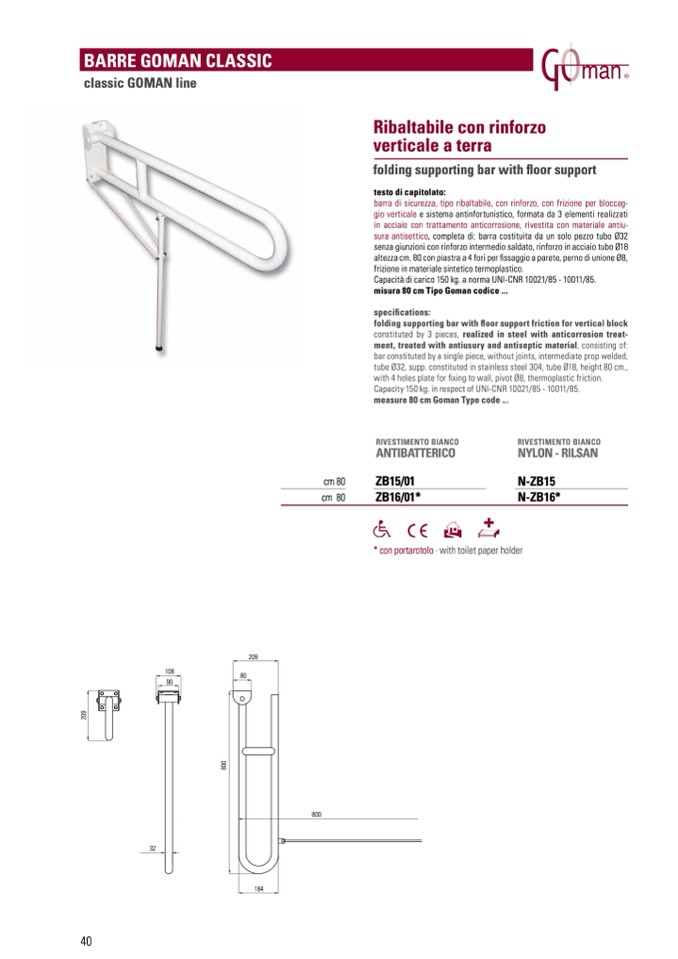

BARRE GOMAN CLASSIC

classic GOMAN line

40

32

108

90

209

80

184

800

cm 80

cm 80

RIVESTIMENTO BIANCO

ANTIBATTERICO

ZB15/01

ZB16/01*

RIVESTIMENTO BIANCO

NYLON - RILSAN

N-ZB15

N-ZB16*

Ribaltabile con rinforzo

verticale a terra

folding supporting bar with floor support

testo di capitolato:

barra di sicurezza, tipo ribaltabile, con rinforzo, con frizione per bloccag-

gio verticale e sistema antinfortunistico, formata da 3 elementi realizzati

in acciaio con trattamento anticorrosione, rivestita con materiale antiu-

sura antisettico, completa di: barra costituita da un solo pezzo tubo Ø32

senza giunzioni con rinforzo intermedio saldato, rinforzo in acciaio tubo Ø18

altezza cm. 80 con piastra a 4 fori per fissaggio a parete, perno di unione Ø8,

frizione in materiale sintetico termoplastico.

Capacità di carico 150 kg. a norma UNI-CNR 10021/85 - 10011/85.

misura 80 cm Tipo Goman codice ...

specifications:

folding supporting bar with floor support friction for vertical block

constituted by 3 pieces, realized in steel with anticorrosion treat-

ment, treated with antiusury and antiseptic material, consisting of:

bar constituted by a single piece, without joints, intermediate prop welded,

tube Ø32, supp. constituted in stainless steel 304, tube Ø18, height 80 cm.,

with 4 holes plate for fixing to wall, pivot Ø8, thermoplastic friction.

Capacity 150 kg. in respect of UNI-CNR 10021/85 - 10011/85.

measure 80 cm Goman Type code ...

* con portarotolo · with toilet paper holder
