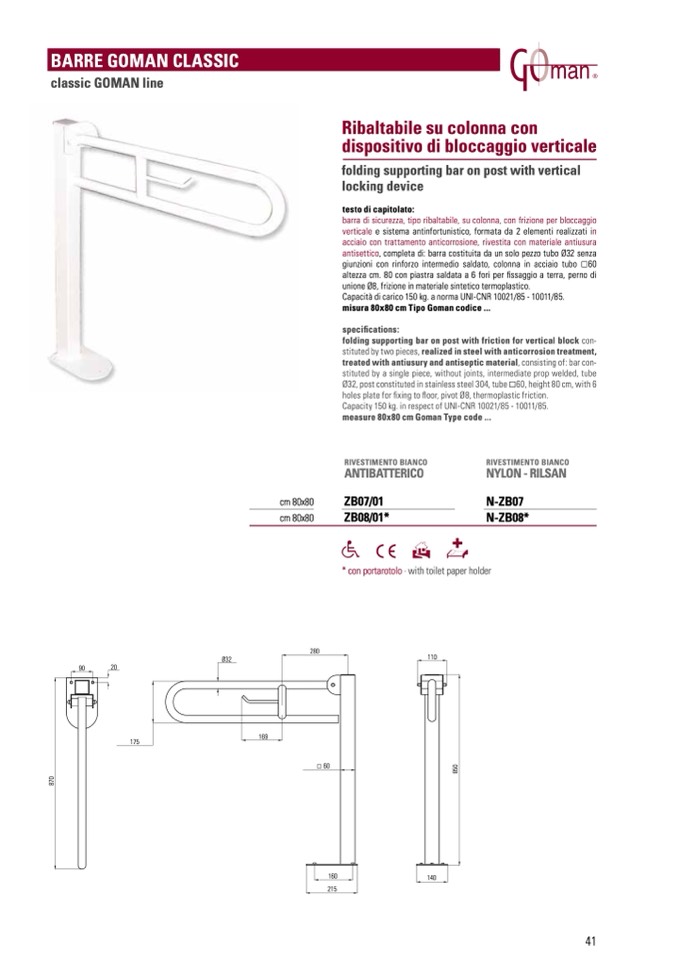

BARRE GOMAN CLASSIC

classic GOMAN line

Ribaltabile su colonna con

dispositivo di bloccaggio verticale

folding supporting bar on post with vertical

locking device

testo di capitolato:

barra di sicurezza, tipo ribaltabile, su colonna, con frizione per bloccaggio

verticale e sistema antinfortunistico, formata da 2 elementi realizzati in

acciaio con trattamento anticorrosione, rivestita con materiale antiusura

antisettico, completa di: barra costituita da un solo pezzo tubo Ø32 senza

giunzioni con rinforzo intermedio saldato, colonna in acciaio tubo ☐60

altezza cm. 80 con piastra saldata a 6 fori per fissaggio a terra, perno di

unione Ø8, frizione in materiale sintetico termoplastico.

Capacità di carico 150 kg. a norma UNI-CNR 10021/85 - 10011/85.

misura 80x80 cm Tipo Goman codice ...

specifications:

folding supporting bar on post with friction for vertical block con-

stituted by two pieces, realized in steel with anticorrosion treatment,

treated with antiusury and antiseptic material, consisting of: bar con-

stituted by a single piece, without joints, intermediate prop welded, tube

Ø32, post constituted in stainless steel 304, tube ☐60, height 80 cm, with 6

holes plate for fixing to floor, pivot Ø8, thermoplastic friction.

Capacity 150 kg. in respect of UNI-CNR 10021/85 - 10011/85.

measure 80x80 cm Goman Type code ...

cm 80x80

cm 80x80

280

☐60

RIVESTIMENTO BIANCO

ANTIBATTERICO

ZB07/01

ZB08/01*

RIVESTIMENTO BIANCO

NYLON - RILSAN

N-ZB07

N-ZB08*

Ø32

110

* con portarotolo · with toilet paper holder

90

20

175

169

160

140

215

41

8

7

0

8

5

0
