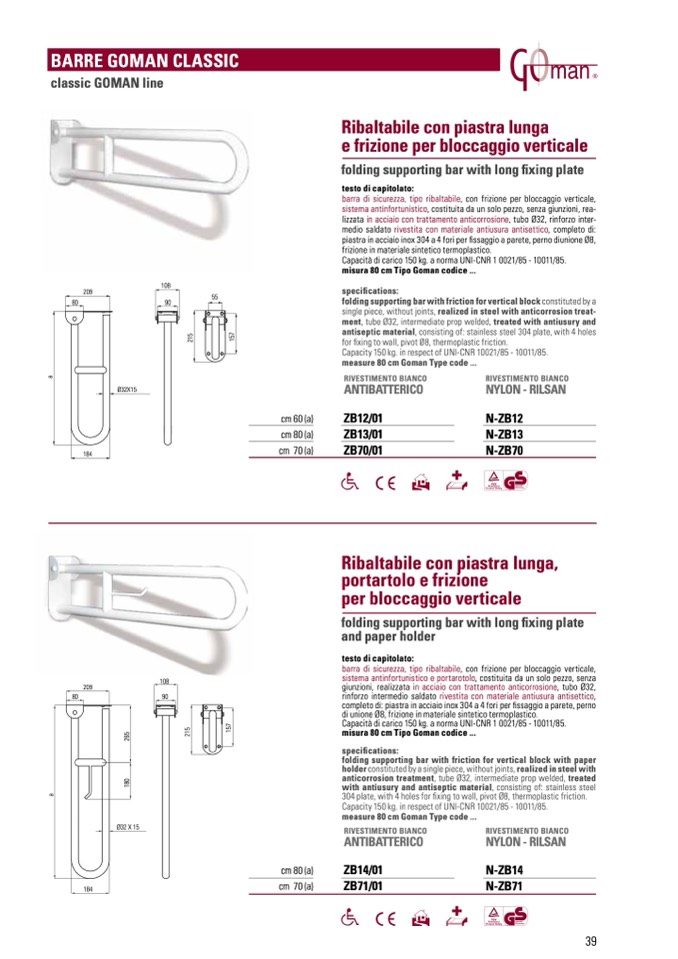

BARRE GOMAN CLASSIC

classic GOMAN line

209

108

80

9

0

55

Ribaltabile con piastra lunga

e frizione per bloccaggio verticale

folding supporting bar with long fixing plate

testo di capitolato:

barra di sicurezza, tipo ribaltabile, con frizione per bloccaggio verticale,

sistema antinfortunistico, costituita da un solo pezzo, senza giunzioni, rea-

lizzata in acciaio con trattamento anticorrosione, tubo Ø32, rinforzo inter-

medio saldato rivestita con materiale antiusura antisettico, completo di:

piastra in acciaio inox 304 a 4 fori per fissaggio a parete, perno diunione Ø8,

frizione in materiale sintetico termoplastico.

Capacità di carico 150 kg. a norma UNI-CNR 1 0021/85 - 10011/85.

misura 80 cm Tipo Goman codice ...

specifications:

folding supporting bar with friction for vertical block constituted by a

single piece, without joints, realized in steel with anticorrosion treat-

ment, tube Ø32, intermediate prop welded, treated with antiusury and

antiseptic material, consisting of: stainless steel 304 plate, with 4 holes

for fixing to wall, pivot Ø8, thermoplastic friction.

Capacity 150 kg. in respect of UNI-CNR 10021/85 - 10011/85.

measure 80 cm Goman Type code ...

80

184

cm 60 (a)

cm 80 (a)

cm 70 (a)

209

108

90

Ribaltabile con piastra lunga,

portartolo e frizione

per bloccaggio verticale

folding supporting bar with long fixing plate

and paper holder

testo di capitolato:

barra di sicurezza, tipo ribaltabile, con frizione per bloccaggio verticale,

sistema antinfortunistico e portarotolo, costituita da un solo pezzo, senza

giunzioni, realizzata in acciaio con trattamento anticorrosione, tubo Ø32,

rinforzo intermedio saldato rivestita con materiale antiusura antisettico,

completo di: piastra in acciaio inox 304 a 4 fori per fissaggio a parete, perno

di unione Ø8, frizione in materiale sintetico termoplastico.

Capacità di carico 150 kg. a norma UNI-CNR 1 0021/85 - 10011/85.

misura 80 cm Tipo Goman codice ...

specifications:

folding supporting bar with friction for vertical block with paper

holder constituted by a single piece, without joints, realized in steel with

anticorrosion treatment, tube Ø32, intermediate prop welded, treated

with antiusury and antiseptic material, consisting of: stainless steel

304 plate, with 4 holes for fixing to wall, pivot Ø8, thermoplastic friction.

Capacity 150 kg. in respect of UNI-CNR 10021/85 - 10011/85.

measure 80 cm Goman Type code ...

184

cm 80 (a)

cm 70 (a)

Ø32X15

RIVESTIMENTO BIANCO

ANTIBATTERICO

ZB12/01

ZB13/01

ZB70/01

RIVESTIMENTO BIANCO

NYLON - RILSAN

N-ZB12

N-ZB13

N-ZB70

a

a

1

8

0

2

6

5

2

1

5

2

1

5

1

5

7

1

5

7

Ø32X15

RIVESTIMENTO BIANCO

ANTIBATTERICO

ZB14/01

ZB71/01

RIVESTIMENTO BIANCO

NYLON - RILSAN

N-ZB14

N-ZB71

39
