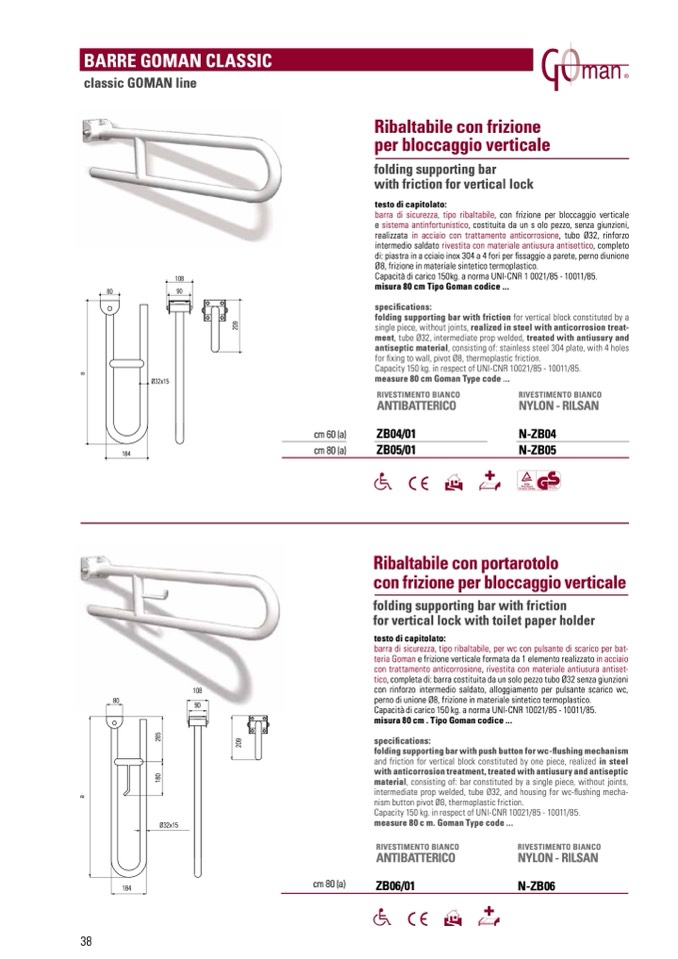

BARRE GOMAN CLASSIC

classic GOMAN line

38

108

80

90

Ø32x15

Ribaltabile con frizione

per bloccaggio verticale

folding supporting bar

with friction for vertical lock

testo di capitolato:

barra di sicurezza, tipo ribaltabile, con frizione per bloccaggio verticale

e sistema antinfortunistico, costituita da un s olo pezzo, senza giunzioni,

realizzata in acciaio con trattamento anticorrosione, tubo Ø32, rinforzo

intermedio saldato rivestita con materiale antiusura antisettico, completo

di: piastra in a cciaio inox 304 a 4 fori per fissaggio a parete, perno diunione

Ø8, frizione in materiale sintetico termoplastico.

Capacità di carico 150kg. a norma UNI-CNR 1 0021/85 - 10011/85.

misura 80 cm Tipo Goman codice ...

specifications:

folding supporting bar with friction for vertical block constituted by a

single piece, without joints, realized in steel with anticorrosion treat-

ment, tube Ø32, intermediate prop welded, treated with antiusury and

antiseptic material, consisting of: stainless steel 304 plate, with 4 holes

for fixing to wall, pivot Ø8, thermoplastic friction.

Capacity 150 kg. in respect of UNI-CNR 10021/85 - 10011/85.

measure 80 cm Goman Type code ...

80

108

90

Ribaltabile con portarotolo

con frizione per bloccaggio verticale

folding supporting bar with friction

for vertical lock with toilet paper holder

testo di capitolato:

barra di sicurezza, tipo ribaltabile, per wc con pulsante di scarico per bat-

teria Goman e frizione verticale formata da 1 elemento realizzato in acciaio

con trattamento anticorrosione, rivestita con materiale antiusura antiset-

tico, completa di: barra costituita da un solo pezzo tubo Ø32 senza giunzioni

con rinforzo intermedio saldato, alloggiamento per pulsante scarico wc,

perno di unione Ø8, frizione in materiale sintetico termoplastico.

Capacità di carico 150 kg. a norma UNI-CNR 10021/85 - 10011/85.

misura 80 cm . Tipo Goman codice ...

specifications:

folding supporting bar with push button for wc-flushing mechanism

and friction for vertical block constituted by one piece, realized in steel

with anticorrosion treatment, treated with antiusury and antiseptic

material, consisting of: bar constituted by a single piece, without joints,

intermediate prop welded, tube Ø32, and housing for wc-flushing mecha-

nism button pivot Ø8, thermoplastic friction.

Capacity 150 kg. in respect of UNI-CNR 10021/85 - 10011/85.

measure 80 c m. Goman Type code ...

184

cm 60 (a)

cm 80 (a)

RIVESTIMENTO BIANCO

ANTIBATTERICO

ZB04/01

ZB05/01

RIVESTIMENTO BIANCO

NYLON - RILSAN

N-ZB04

N-ZB05

a

a

1

8

0

2

6

5

2

0

9

2

0

9

184

cm 80 (a)

RIVESTIMENTO BIANCO

ANTIBATTERICO

ZB06/01

RIVESTIMENTO BIANCO

NYLON - RILSAN

N-ZB06

Ø32x15
