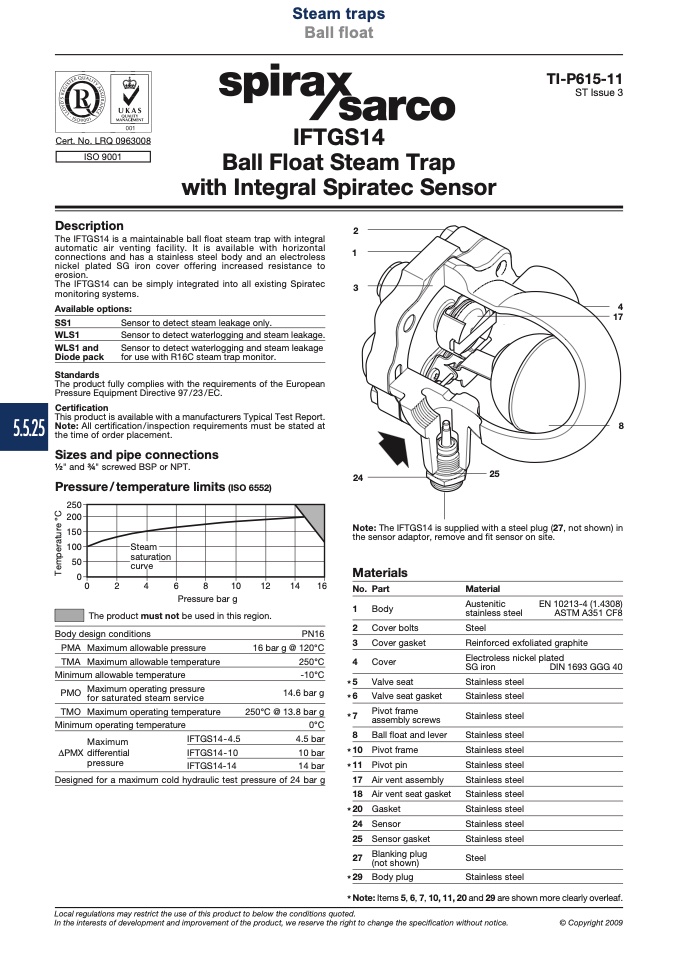

Steam traps

Ball float

ISO 9001

5.5.25

Steam

saturation

curve

TI-P615-11

ST Issue 3

Cert. No. LRQ 0963008

Description

IFTGS14

Ball Float Steam Trap

with Integral Spiratec Sensor

The IFTGS14 is a maintainable ball

float steam trap with integral

automatic air venting facility. It is available with horizontal

connections and has a stainless steel body and an electroless

nickel plated SG iron cover offering increased resistance to

erosion.

The IFTGS14 can be simply integrated into all existing Spiratec

monitoring systems.

Available options:

2

1

3

SS1

WLS1

WLS1 and

Diode pack

Standards

Sensor to detect steam leakage only.

Sensor to detect waterlogging and steam leakage.

Sensor to detect waterlogging and steam leakage

for use with R16C steam trap monitor.

4

17

8

The product fully complies with the requirements of the European

Pressure Equipment Directive 97/23/EC.

Certification

This product is available with a manufacturers Typical Test Report.

Note: All certification/inspection requirements must be stated at

the time of order placement.

Sizes and pipe connections

1⁄2" and 3⁄4" screwed BSP or NPT.

Pressure / temperature limits (ISO 6552)

���

���

���

���

��

�

24

25

�

�

�

�

�

��

��

��

��

Pressure bar g

Materials

No. Part

1

Body

2

Cover bolts

3

Cover gasket

4

Cover

* 5

Valve seat

* 6

Valve seat gasket

* 7

Pivot frame

assembly screws

8

Ball float and lever

*10 Pivot frame

* 11 Pivot pin

17 Air vent assembly

18 Air vent seat gasket

* 20 Gasket

24 Sensor

25 Sensor gasket

27

Blanking plug

(not shown)

Material

Austenitic

stainless steel

EN 10213-4 (1.4308)

ASTM A351 CF8

Note: The IFTGS14 is supplied with a steel plug (27, not shown) in

the sensor adaptor, remove and fit sensor on site.

The product must not be used in this region.

Body design conditions

Steel

Reinforced exfoliated graphite

Electroless nickel plated

PN16

16 bar g @ 120°C

250°C

-10°C

14.6 bar g

250°C @ 13.8 bar g

0°C

4.5 bar

10 bar

14 bar

Designed for a maximum cold hydraulic test pressure of 24 bar g

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

SG iron

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Steel

DIN 1693 GGG 40

TMO Maximum operating temperature

Minimum operating temperature

Maximum

PMX differential

IFTGS14-4.5

IFTGS14-10

IFTGS14-14

pressure

* 29 Body plug

* Note: Items 5, 6, 7, 10, 11, 20 and 29 are shown more clearly overleaf.

Stainless steel

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
