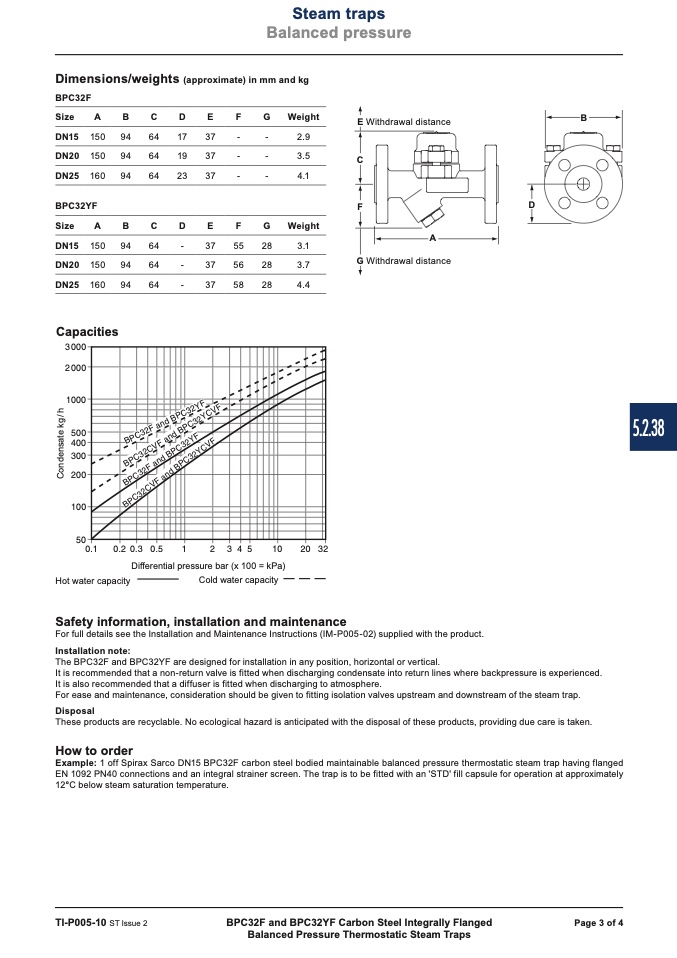

Steam traps
Balanced pressure
Dimensions/weights (approximate) in mm and kg
BPC32F
Size
A
B
C
D
E
F
G
Weight
DN15 150 94
64
17
37
-
-
2.9
DN20 150 94
64
19
37
-
-
3.5
DN25 160 94
64
23
37
-
-
4.1
BPC32YF
Size
A
B
C
D
E
F
G
Weight
DN15 150 94
64
-
37
55
28
3.1
DN20 150 94
64
-
37
56
28
3.7
DN25 160 94
64
-
37
58
28
4.4
Capacities
�� ������
�� ������
��������
������
������
������
������
������
����
������
������������������
��
�� ������
����
��������
Differential pressure bar (x 100 = kPa)
Hot water capacity
Cold water capacity
Safety information, installation and maintenance
E Withdrawal distance
C
F
A
G Withdrawal distance
B
D
For full details see the Installation and Maintenance Instructions (IM-P005-02) supplied with the product.
Installation note:
The BPC32F and BPC32YF are designed for installation in any position, horizontal or vertical.
It is recommended that a non-return valve is fitted when discharging condensate into return lines where backpressure is experienced.
It is also recommended that a diffuser is fitted when discharging to atmosphere.
For ease and maintenance, consideration should be given to fitting isolation valves upstream and downstream of the steam trap.
Disposal
These products are recyclable. No ecological hazard is anticipated with the disposal of these products, providing due care is taken.
How to order
Example: 1 off Spirax Sarco DN15 BPC32F carbon steel bodied maintainable balanced pressure thermostatic steam trap having flanged
EN 1092 PN40 connections and an integral strainer screen. The trap is to be fitted with an 'STD' fill capsule for operation at approximately
12°C below steam saturation temperature.
TI-P005-10 ST Issue 2
BPC32F and BPC32YF Carbon Steel Integrally Flanged
Page 3 of 4
Balanced Pressure Thermostatic Steam Traps
5.2.38
