Steam traps

Balanced pressure

5.2.39

or

mm

24 A/F

16 A/F

M10 x 30

27 A/F

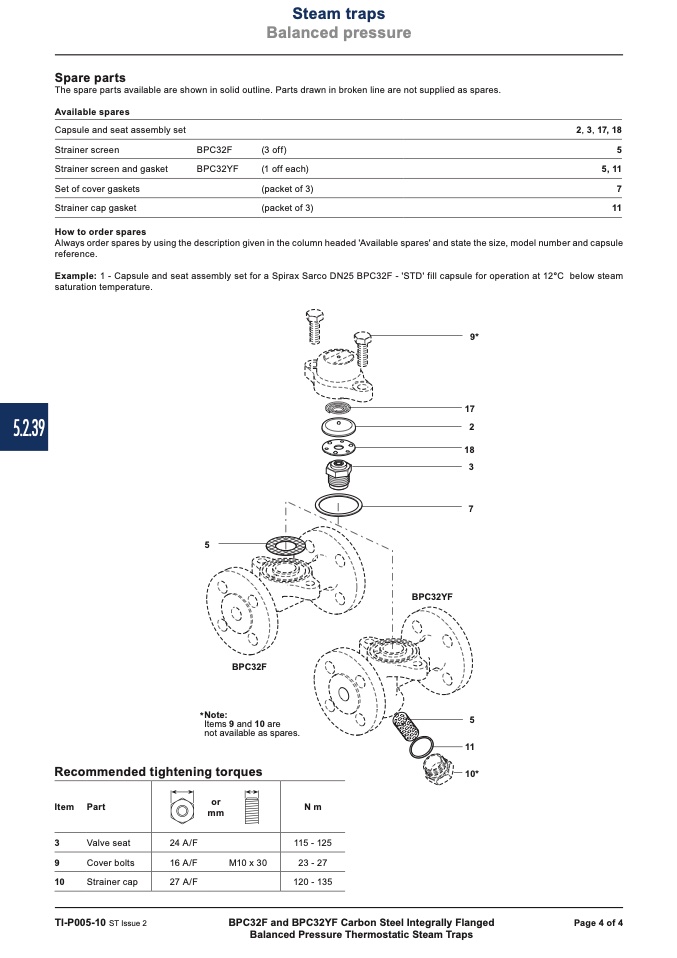

Spare parts

The spare parts available are shown in solid outline. Parts drawn in broken line are not supplied as spares.

Available spares

Capsule and seat assembly set

Strainer screen

Strainer screen and gasket

Set of cover gaskets

Strainer cap gasket

How to order spares

BPC32F

(3 off)

BPC32YF

(1 off each)

(packet of 3)

(packet of 3)

2, 3, 17, 18

5

5, 11

7

11

Always order spares by using the description given in the column headed 'Available spares' and state the size, model number and capsule

reference.

Example: 1 - Capsule and seat assembly set for a Spirax Sarco DN25 BPC32F - 'STD' fill capsule for operation at 12°C below steam

saturation temperature.

5

9*

17

2

18

3

7

BPC32YF

BPC32F

* Note:

Items 9 and 10 are

not available as spares.

5

11

10*

Recommended tightening torques

Item Part

3

Valve seat

9

Cover bolts

10

Strainer cap

TI-P005-10 ST Issue 2

Nm

115 - 125

23 - 27

120 - 135

BPC32F and BPC32YF Carbon Steel Integrally Flanged

Balanced Pressure Thermostatic Steam Traps

Page 4 of 4
