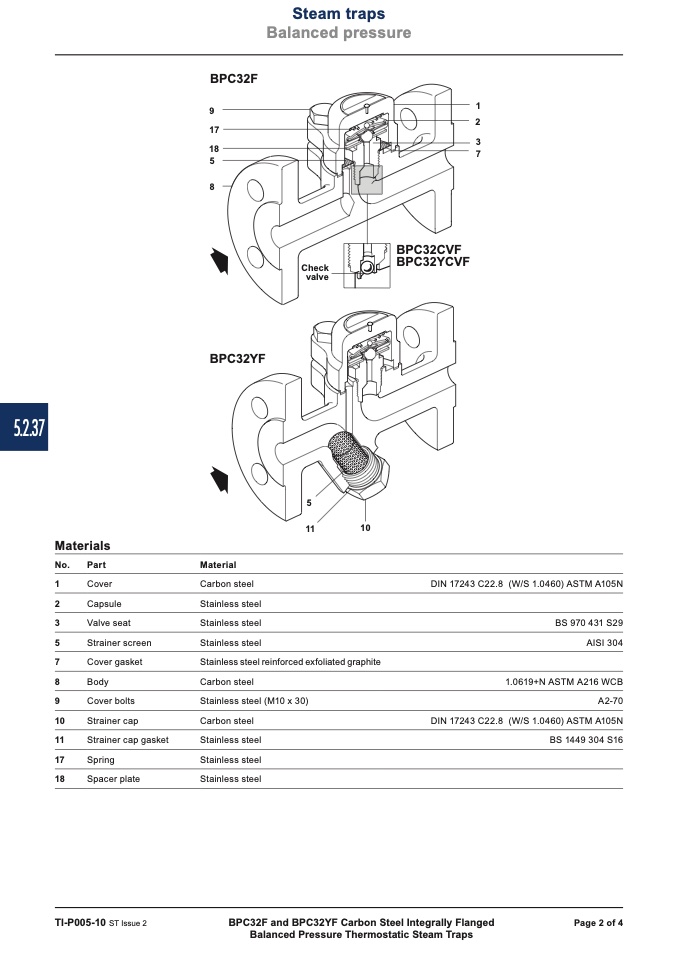

Materials

No.

Part

1

Cover

2

Capsule

3

Valve seat

5

Strainer screen

7

Cover gasket

8

Body

9

Cover bolts

10

Strainer cap

11

Strainer cap gasket

17

Spring

18

Spacer plate

TI-P005-10 ST Issue 2

5

11

10

BPC32F

9

17

18

5

8

1

2

3

7

BPC32CVF

BPC32YCVF

BPC32YF

Material

Steam traps

Balanced pressure

Carbon steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel reinforced exfoliated graphite

Carbon steel

Stainless steel (M10 x 30)

Carbon steel

Stainless steel

Stainless steel

Stainless steel

DIN 17243 C22.8 (W/S 1.0460) ASTM A105N

BS 970 431 S29

AISI 304

1.0619+N ASTM A216 WCB

A2-70

DIN 17243 C22.8 (W/S 1.0460) ASTM A105N

BS 1449 304 S16

Check

valve

BPC32F and BPC32YF Carbon Steel Integrally Flanged
