Steam

saturation

curve

Body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

ASME (ANSI) 300

50 bar g @ 50°C

400°C @ 35 bar g

-60°C

0°C

Steam traps

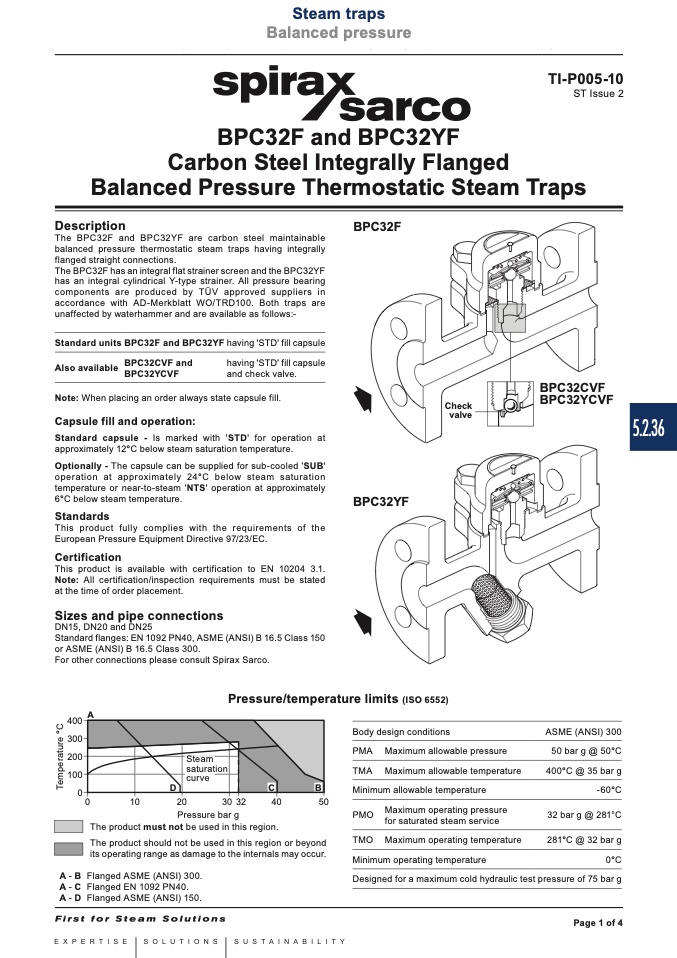

BPC32F and BPC32YF

Carbon Steel Integrally Flanged

Balanced Pressure Thermostatic Steam Traps

��

Minimum allowable temperature

A - B Flanged ASME (ANSI) 300.

A - C Flanged EN 1092 PN40.

A - D Flanged ASME (ANSI) 150.

Balanced pressure

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

Description

The BPC32F and BPC32YF are carbon steel maintainable

balanced pressure thermostatic steam traps having integrally

flanged straight connections.

The BPC32F has an integral flat strainer screen and the BPC32YF

has an integral cylindrical Y-type strainer. All pressure bearing

components are produced by TÜV approved suppliers in

accordance with AD-Merkblatt WO/TRD100. Both traps are

unaffected by waterhammer and are available as follows:-

Standard units BPC32F and BPC32YF having 'STD' fill capsule

Alsoavailable

BPC32CVFand

having'STD'fillcapsule

BPC32YCVF

and check valve.

Note: When placing an order always state capsule fill.

Capsule fill and operation:

Standard capsule - Is marked with 'STD' for operation at

approximately 12°C below steam saturation temperature.

Optionally - The capsule can be supplied for sub-cooled 'SUB'

operation at approximately 24°C below steam saturation

temperature or near-to-steam 'NTS' operation at approximately

6°C below steam temperature.

Standards

This product fully complies with the requirements of the

European Pressure Equipment Directive 97/23/EC.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification/inspection requirements must be stated

at the time of order placement.

Sizes and pipe connections

DN15, DN20 and DN25

Standard flanges: EN 1092 PN40, ASME (ANSI) B 16.5 Class 150

or ASME (ANSI) B 16.5 Class 300.

For other connections please consult Spirax Sarco.

BPC32F

Pressure/temperature limits (ISO 6552)

��

Pressure bar g

Maximum operating pressure

PMO

for saturated steam service

32 bar g @ 281°C

281°C @ 32 bar g

The product must not be used in this region.

The product should not be used in this region or beyond

its operating range as damage to the internals may occur.

TMO Maximum operating temperature

Minimum operating temperature

Designed for a maximum cold hydraulic test pressure of 75 bar g

BPC32YF

Check

valve

BPC32CVF

BPC32YCVF

5.2.36 TI-P005-10

ST Issue 2

Page 1 of 4
