5.2.29

Materials

No.

Part

1

Cover

2

Capsule

3

Valve seat

5

Strainer screen

7

Cover gasket

8

Body / flanges

9

Cover bolts

10

Strainer cap

11

Strainer cap gasket

17

Spring

18

Spacer plate

Material

Carbon steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Carbon steel

Stainless steel

Carbon steel

Stainless steel

Stainless steel

Stainless steel

5

11

10

reinforced exfoliated graphite

(M10 x 30)

DIN 17243 C22.8

(W/S 1.0460) ASTM A105N

BS 970 431 S29

AISI 304

Page 2 of 4

TI-P005-01 ST Issue 6

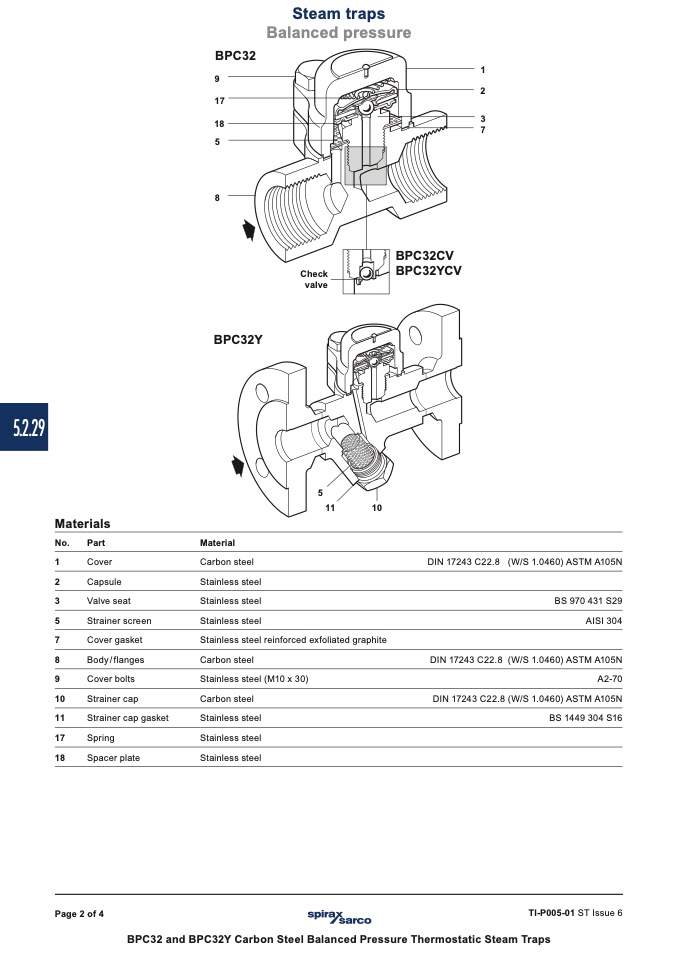

BPC32 and BPC32Y Carbon Steel Balanced Pressure Thermostatic Steam Traps

BPC32

9

17

18

5

8

BPC32Y

Check

valve

1

2

3

7

BPC32CV

BPC32YCV

Steam traps

Balanced pressure

DIN 17243 C22.8 (W/S 1.0460) ASTM A105N

A2-70

DIN 17243 C22.8 (W/S 1.0460) ASTM A105N

BS 1449 304 S16
