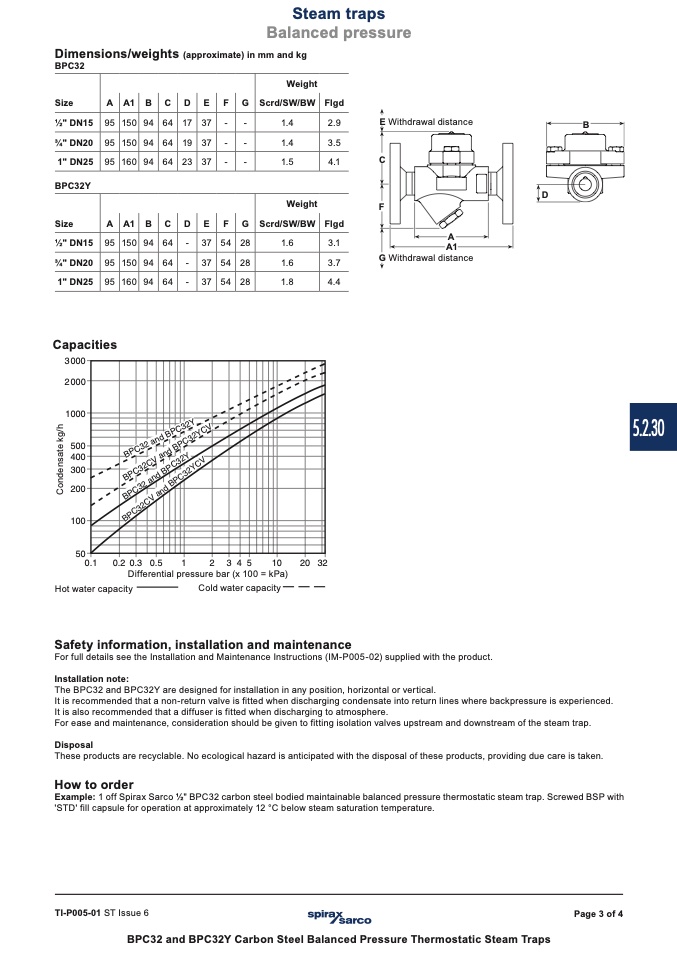

Dimensions/weights (approximate) in mm and kg
BPC32
Steam traps
Balanced pressure
Size
1⁄2" DN15
3⁄4" DN20
1" DN25
BPC32Y
Size
1⁄2" DN15
3⁄4" DN20
1" DN25
Capacities
�� ������
�� ������
��������
������
������
������
������
������
Weight
Scrd/SW/BW Flgd
2.9
3.5
4.1
Weight
Scrd/SW/BW Flgd
3.1
3.7
4.4
E Withdrawal distance
C
F
G Withdrawal distance
B
D
A A1 B C D E F G
95
150
94
64
17
37
-
-
1.4
95
150
94
64
19
37
-
-
1.4
95
160
94
64
23
37
-
-
1.5
A A1 B C D E F G
A
95
150
94
64
-
37
54
28
1.6
A1
95
150
94
64
-
37
54
28
1.6
95
160
94
64
-
37
54
28
1.8
5.2.30
����
������
������������������
��
�� ������
����
��������
Differential pressure bar (x 100 = kPa)
Hot water capacity
Cold water capacity
Safety information, installation and maintenance
For full details see the Installation and Maintenance Instructions (IM-P005-02) supplied with the product.
Installation note:
The BPC32 and BPC32Y are designed for installation in any position, horizontal or vertical.
It is recommended that a non-return valve is fitted when discharging condensate into return lines where backpressure is experienced.
It is also recommended that a diffuser is fitted when discharging to atmosphere.
For ease and maintenance, consideration should be given to fitting isolation valves upstream and downstream of the steam trap.
Disposal
These products are recyclable. No ecological hazard is anticipated with the disposal of these products, providing due care is taken.
How to order
Example: 1 off Spirax Sarco 1⁄2" BPC32 carbon steel bodied maintainable balanced pressure thermostatic steam trap. Screwed BSP with
'STD' fill capsule for operation at approximately 12 °C below steam saturation temperature.
TI-P005-01 ST Issue 6
Page 3 of 4
BPC32 and BPC32Y Carbon Steel Balanced Pressure Thermostatic Steam Traps
