Description

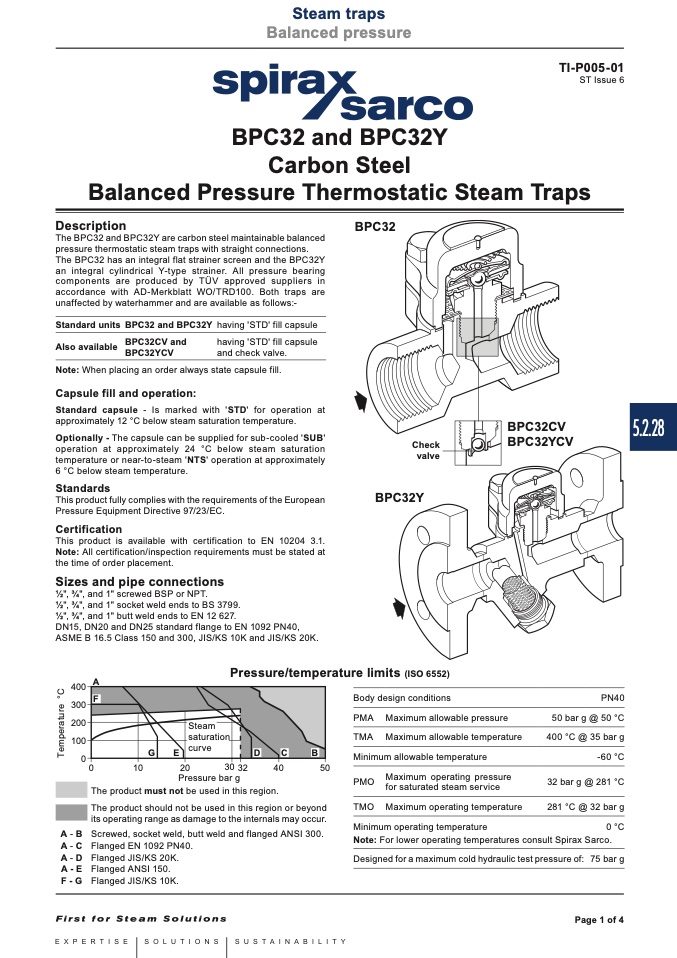

BPC32

The BPC32 and BPC32Y are carbon steel maintainable balanced

pressure thermostatic steam traps with straight connections.

The BPC32 has an integral flat strainer screen and the BPC32Y

an integral cylindrical Y-type strainer. All pressure bearing

components are produced by TÜV approved suppliers in

accordance with AD-Merkblatt WO/TRD100. Both traps are

unaffected by waterhammer and are available as follows:-

Standard units BPC32 and BPC32Y having 'STD' fill capsule

Also available

BPC32CV and

having 'STD' fill capsule

BPC32YCV

and check valve.

Note: When placing an order always state capsule fill.

Capsule fill and operation:

Standard capsule - Is marked with 'STD' for operation at

approximately 12 °C below steam saturation temperature.

Optionally - The capsule can be supplied for sub-cooled 'SUB'

operation at approximately 24 °C below steam saturation

temperature or near-to-steam 'NTS' operation at approximately

6 °C below steam temperature.

Standards

This product fully complies with the requirements of the European

Pressure Equipment Directive 97/23/EC.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification/inspection requirements must be stated at

the time of order placement.

Sizes and pipe connections

1⁄2", 3⁄4", and 1" screwed BSP or NPT.

1⁄2", 3⁄4", and 1" socket weld ends to BS 3799.

1⁄2", 3⁄4", and 1" butt weld ends to EN 12 627.

DN15, DN20 and DN25 standard flange to EN 1092 PN40,

ASME B 16.5 Class 150 and 300, JIS/KS 10K and JIS/KS 20K.

Check

valve

BPC32CV

BPC32YCV

5.2.28

��

A-B

A-C

A-D

A-E

F-G

��

Pressure/temperature limits (ISO 6552)

Steam

saturation

�

curve

�

��

Pressure bar g

Body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

TMO Maximum operating temperature

Minimum operating temperature

PN40

50 bar g @ 50 °C

400 °C @ 35 bar g

-60 °C

32 bar g @ 281 °C

281 °C @ 32 bar g

0 °C

The product must not be used in this region.

The product should not be used in this region or beyond

its operating range as damage to the internals may occur.

Screwed, socket weld, butt weld and flanged ANSI 300.

Flanged EN 1092 PN40.

Flanged JIS/KS 20K.

Flanged ANSI 150.

Flanged JIS/KS 10K.

Note: For lower operating temperatures consult Spirax Sarco.

Designedforamaximumcoldhydraulictestpressureof: 75barg

Steam traps

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

Balanced pressure

TI-P005-01

ST Issue 6

BPC32 and BPC32Y

Carbon Steel

Balanced Pressure Thermostatic Steam Traps

BPC32Y

Page 1 of 4
