Steam traps

Steam trap management

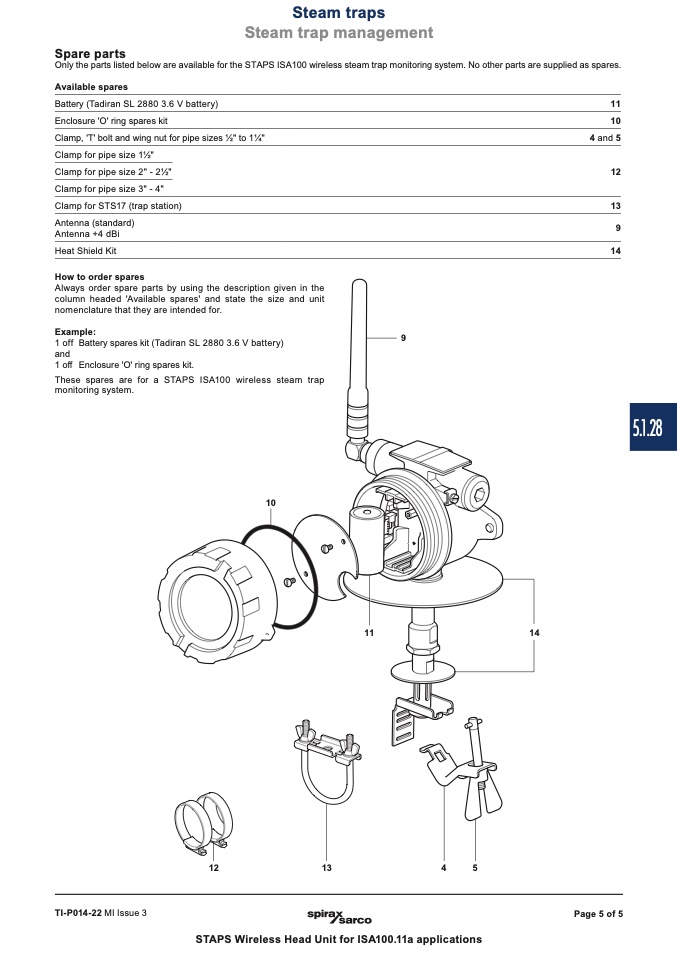

Spare parts

Only the parts listed below are available for the STAPS ISA100 wireless steam trap monitoring system. No other parts are supplied as spares.

Available spares

Battery (Tadiran SL 2880 3.6 V battery)

Enclosure 'O' ring spares kit

Clamp, 'T' bolt and wing nut for pipe sizes 1⁄2" to 11⁄4"

Clamp for pipe size 11⁄2"

Clamp for pipe size 2" - 21⁄2"

Clamp for pipe size 3" - 4"

Clamp for STS17 (trap station)

Antenna (standard)

Antenna +4 dBi

Heat Shield Kit

How to order spares

Always order spare parts by using the description given in the

column headed 'Available spares' and state the size and unit

nomenclature that they are intended for.

Example:

1 off Battery spares kit (Tadiran SL 2880 3.6 V battery)

and

1 off Enclosure 'O' ring spares kit.

These spares are for a STAPS ISA100 wireless steam trap

monitoring system.

10

11

10

4 and 5

12

13

9

14

9

11

14

12

13

4

5

TI-P014-22 MI Issue 3

Page 5 of 5

STAPS Wireless Head Unit for ISA100.11a applications

5.1.28
