Steam traps
Steam trap management
B
G
A
F
H
I
D
J
5.1.27
Size
A
B
C D
E
F G
H
I J
K
L Weight
DN15 - 1⁄2"
180
110
150 50
42
87 110
154
284 154
29
50 2.3 kg
DN20 - 3⁄4" 180
110 150 56
42 87 110
154 284 154
29 50 2.3 kg
DN25 - 1"
180
110
150 64
42
87 110
154
284 154
29
50 2.3 kg
DN32 - 11⁄4"
180
110
150 74
42
87 110
154
284 154
29
50 2.3 kg
DN40 - 11⁄2"
180
110
150
42 110
154
284 154
46 2.3 kg
DN50 - 2"
180
110
150
42 110
154
284 154
46 2.3 kg
DN65 - 21⁄2"
180
110
150
42 110
154
284 154
46 2.3 kg
DN80 - 3"
180
110
150
42 110
154
284 154
46 2.3 kg
DN100 - 4"
180
110
150
42 110
154
284 154
46 2.3 kg
STS17.2 85
90

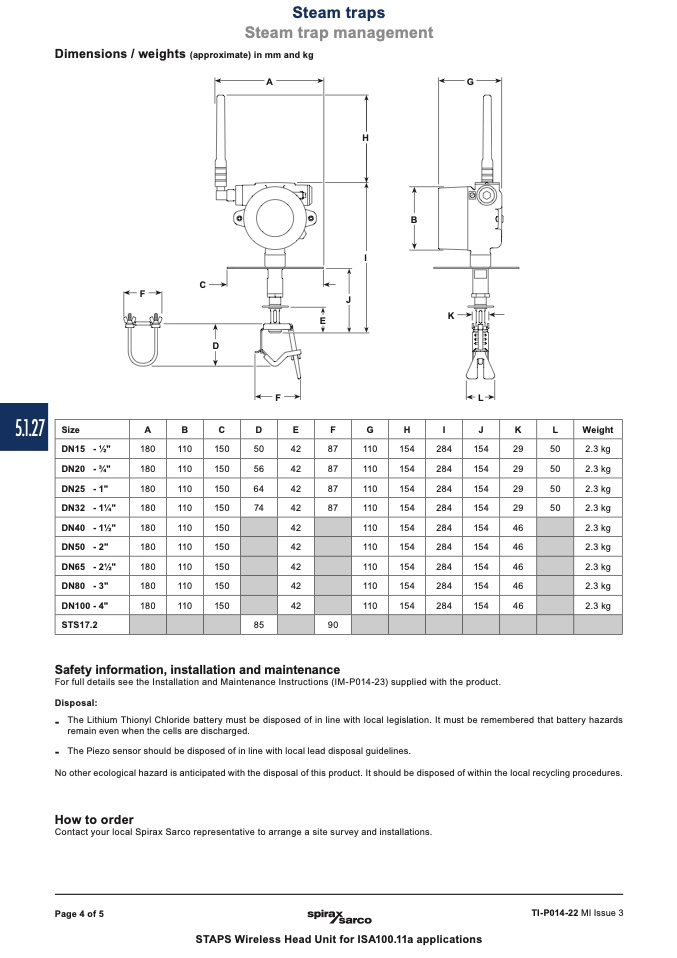

Dimensions / weights (approximate) in mm and kg
C
E
K
F
L
Safety information, installation and maintenance
For full details see the Installation and Maintenance Instructions (IM-P014-23) supplied with the product.
Disposal:
-
The Lithium Thionyl Chloride battery must be disposed of in line with local legislation. It must be remembered that battery hazards
remain even when the cells are discharged.
-
The Piezo sensor should be disposed of in line with local lead disposal guidelines.
No other ecological hazard is anticipated with the disposal of this product. It should be disposed of within the local recycling procedures.
How to order
Contact your local Spirax Sarco representative to arrange a site survey and installations.
Page 4 of 5
TI-P014-22 MI Issue 3
STAPS Wireless Head Unit for ISA100.11a applications
