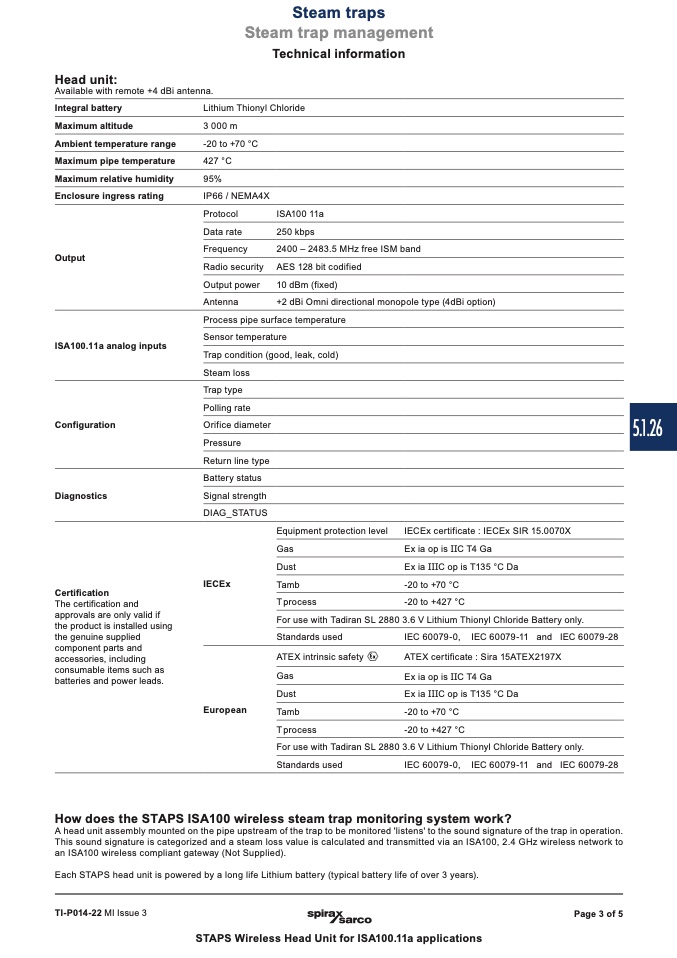

Head unit:
Available with remote +4 dBi antenna.
Steam traps
Steam trap management
Technical information
Integral battery
Maximum altitude
Ambient temperature range
Maximum pipe temperature
Maximum relative humidity
Enclosure ingress rating
Output
ISA100.11a analog inputs
Configuration
Diagnostics
Certification
The certification and
approvals are only valid if
the product is installed using
the genuine supplied
component parts and
accessories, including
consumable items such as
batteries and power leads.
Lithium Thionyl Chloride
3 000 m
-20 to +70 °C
427 °C
95%
IP66 / NEMA4X
Protocol
Data rate
Frequency
Radio security
Output power
Antenna
ISA100 11a
250 kbps
2400 – 2483.5 MHz free ISM band
AES 128 bit codified
10 dBm (fixed)
+2 dBi Omni directional monopole type (4dBi option)
Process pipe surface temperature
Sensor temperature
Trap condition (good, leak, cold)
Steam loss
Trap type
Polling rate
Orifice diameter
Pressure
Return line type
Battery status
Signal strength
DIAG_STATUS
IECEx
Tamb
Equipment protection level
Gas
Dust
IECEx certificate : IECEx SIR 15.0070X
Ex ia op is IIC T4 Ga
Ex ia IIIC op is T135 °C Da
-20 to +70 °C
-20 to +427 °C
T process
For use with Tadiran SL 2880 3.6 V Lithium Thionyl Chloride Battery only.
European
Standards used
ATEX intrinsic safety
Gas
Dust
Tamb
T process
IEC 60079-0, IEC 60079-11 and IEC 60079-28
ATEX certificate : Sira 15ATEX2197X
Ex ia op is IIC T4 Ga
Ex ia IIIC op is T135 °C Da
-20 to +70 °C
-20 to +427 °C
For use with Tadiran SL 2880 3.6 V Lithium Thionyl Chloride Battery only.
Standards used
IEC 60079-0, IEC 60079-11 and IEC 60079-28
How does the STAPS ISA100 wireless steam trap monitoring system work?
A head unit assembly mounted on the pipe upstream of the trap to be monitored 'listens' to the sound signature of the trap in operation.
This sound signature is categorized and a steam loss value is calculated and transmitted via an ISA100, 2.4 GHz wireless network to
an ISA100 wireless compliant gateway (Not Supplied).
Each STAPS head unit is powered by a long life Lithium battery (typical battery life of over 3 years).
TI-P014-22 MI Issue 3
Page 3 of 5
STAPS Wireless Head Unit for ISA100.11a applications
