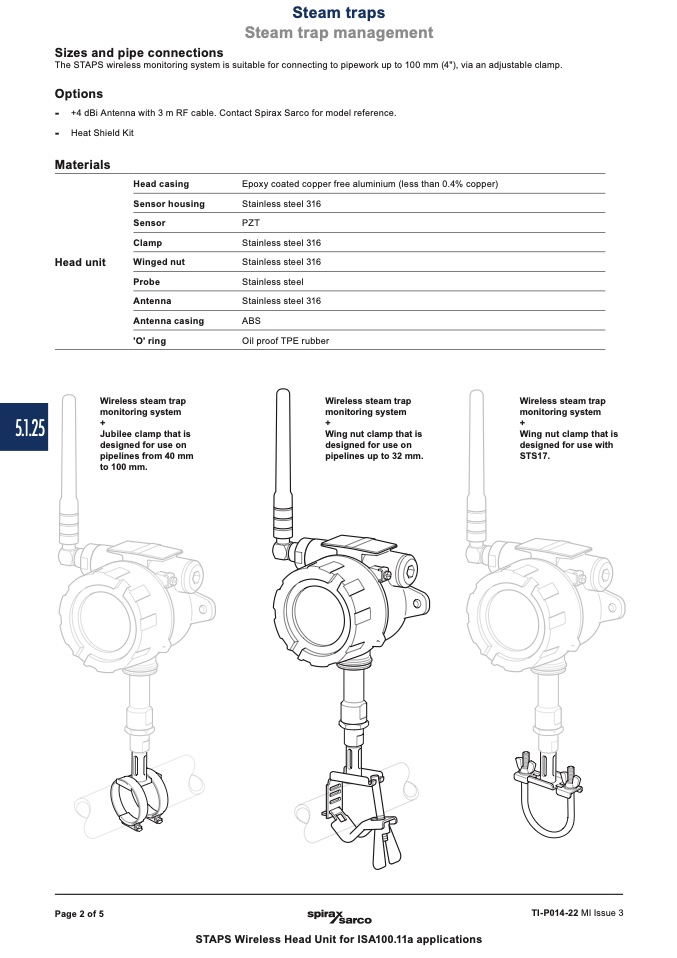

Steam traps

Steam trap management

5.1.25

Sizes and pipe connections

The STAPS wireless monitoring system is suitable for connecting to pipework up to 100 mm (4"), via an adjustable clamp.

Options

-

+4 dBi Antenna with 3 m RF cable. Contact Spirax Sarco for model reference.

-

Heat Shield Kit

Materials

Head unit

Head casing

Sensor housing

Sensor

Clamp

Winged nut

Probe

Antenna

Antenna casing

'O' ring

Epoxy coated copper free aluminium (less than 0.4% copper)

Stainless steel 316

PZT

Stainless steel 316

Stainless steel 316

Stainless steel

Stainless steel 316

ABS

Oil proof TPE rubber

Wireless steam trap

monitoring system

+

+

+

Jubilee clamp that is

designed for use on

pipelines from 40 mm

to 100 mm.

Wing nut clamp that is

designed for use on

pipelines up to 32 mm.

Wireless steam trap

Wireless steam trap

monitoring system

Wing nut clamp that is

designed for use with

STS17.

monitoring system
