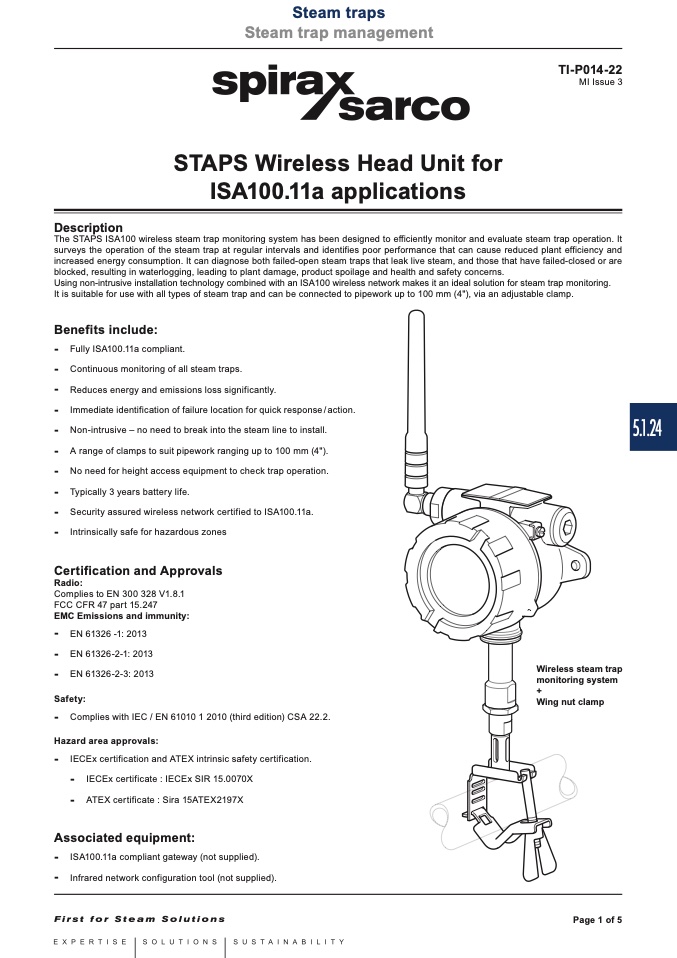

Steam traps

Local regulations may restrict the use of this product to below the conditions quoted.

Steam trap management

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2016

TI-P014-22

MI Issue 3

STAPS Wireless Head Unit for

ISA100.11a applications

Description

The STAPS ISA100 wireless steam trap monitoring system has been designed to efficiently monitor and evaluate steam trap operation. It

surveys the operation of the steam trap at regular intervals and identifies poor performance that can cause reduced plant efficiency and

increased energy consumption. It can diagnose both failed-open steam traps that leak live steam, and those that have failed-closed or are

blocked, resulting in waterlogging, leading to plant damage, product spoilage and health and safety concerns.

Using non-intrusive installation technology combined with an ISA100 wireless network makes it an ideal solution for steam trap monitoring.

It is suitable for use with all types of steam trap and can be connected to pipework up to 100 mm (4"), via an adjustable clamp.

Benefits include:

-

Fully ISA100.11a compliant.

-

Continuous monitoring of all steam traps.

-

Reduces energy and emissions loss significantly.

-

Immediate identification of failure location for quick response / action.

-

Non-intrusive – no need to break into the steam line to install.

-

A range of clamps to suit pipework ranging up to 100 mm (4").

-

No need for height access equipment to check trap operation.

-

Typically 3 years battery life.

-

Security assured wireless network certified to ISA100.11a.

-

Intrinsically safe for hazardous zones

Certification and Approvals

Radio:

Complies to EN 300 328 V1.8.1

FCC CFR 47 part 15.247

EMC Emissions and immunity:

-

EN 61326 -1: 2013

-

EN 61326-2-1: 2013

-

EN 61326-2-3: 2013

Safety:

-

Complies with IEC / EN 61010 1 2010 (third edition) CSA 22.2.

Hazard area approvals:

-

IECEx certification and ATEX intrinsic safety certification.

-

IECEx certificate : IECEx SIR 15.0070X

-

ATEX certificate : Sira 15ATEX2197X

Associated equipment:

-

ISA100.11a compliant gateway (not supplied).

-

Infrared network configuration tool (not supplied).

Wireless steam trap

monitoring system

+

Wing nut clamp

Page 1 of 5

5.1.24
