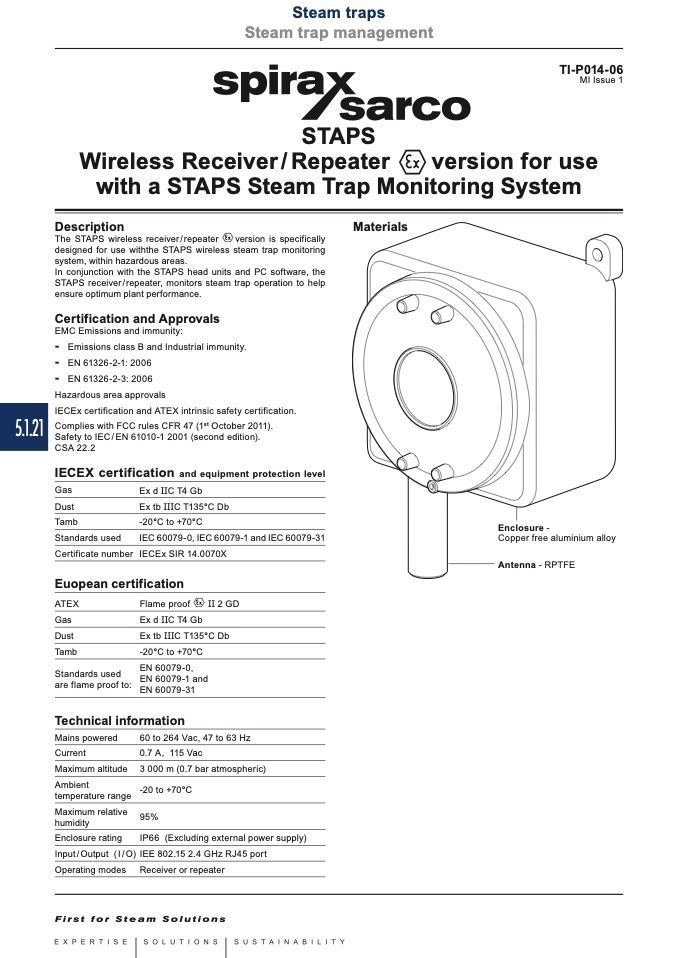

Steam traps
Local regulations may restrict the use of this product to below the conditions quoted.
Steam trap management
In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2016
5.1.21
TI-P014-06
MI Issue 1
STAPS
Wireless Receiver / Repeater
version for use
with a STAPS Steam Trap Monitoring System
Description
The STAPS wireless receiver/repeater
version is specifically
designed for use withthe STAPS wireless steam trap monitoring
system, within hazardous areas.
In conjunction with the STAPS head units and PC software, the
STAPS receiver/repeater, monitors steam trap operation to help
ensure optimum plant performance.
Certification and Approvals
EMC Emissions and immunity:
-
Emissions class B and Industrial immunity.
-
EN 61326-2-1: 2006
-
EN 61326-2-3: 2006
Hazardous area approvals
IECEx certification and ATEX intrinsic safety certification.
Complies with FCC rules CFR 47 (1
st
October 2011).
Safety to IEC / EN 61010-1 2001 (second edition).
CSA 22.2
IECEX certification and equipment protection level
Materials
Gas
Dust
Tamb
Standards used
Certificate number
Ex d IIC T4 Gb
Ex tb IIIC T135°C Db
-20°C to +70°C
IEC 60079-0, IEC 60079-1 and IEC 60079-31
IECEx SIR 14.0070X
Enclosure -
Copper free aluminium alloy
Antenna - RPTFE
Euopean certification
ATEX
Gas
Dust
Tamb
Standards used
are flame proof to:
Flame proof
II 2 GD
ExdIICT4Gb
Ex tb IIIC T135°C Db
-20°C to +70°C
EN 60079-0,
EN 60079-1 and
EN 60079-31
Technical information
Mains powered
Current
Maximum altitude
Ambient
temperature range
Maximum relative
humidity
Enclosure rating
Input / Output ( I / O)
Operating modes
60 to 264 Vac, 47 to 63 Hz
0.7 A, 115 Vac
3 000 m (0.7 bar atmospheric)
-20 to +70°C
95%
IP66 (Excluding external power supply)
IEE 802.15 2.4 GHz RJ45 port
Receiver or repeater
