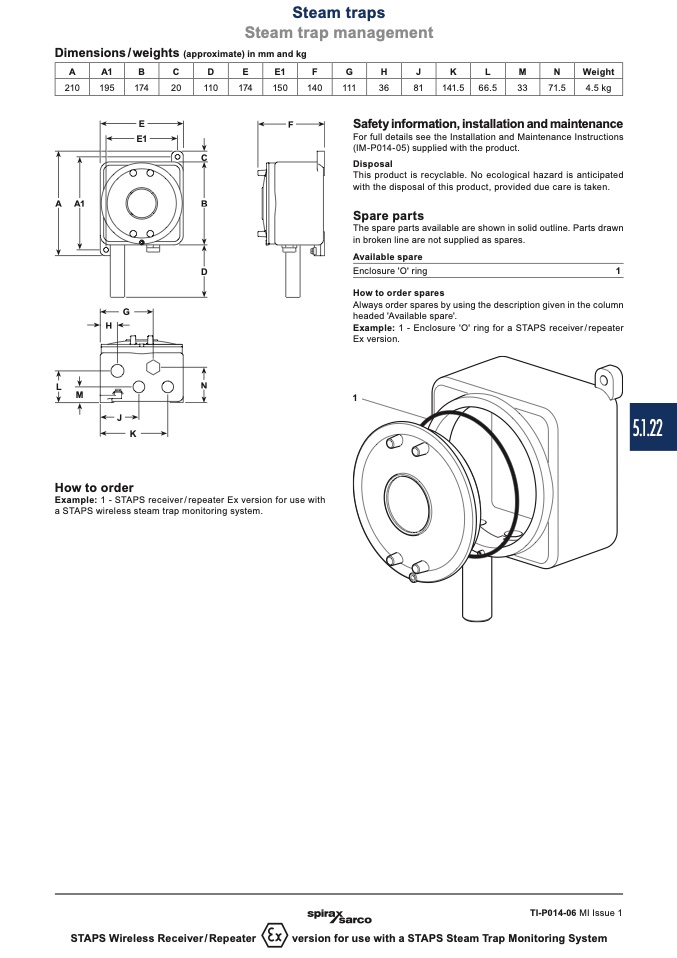

Dimensions/weights (approximate) in mm and kg

Steam traps

Steam trap management

A A1 B

C

D E

E1

F G

H

J K L

M

N Weight

210 195 174

20 110 174

150 140 111

36 81 141.5 66.5

33 71.5 4.5 kg

E

F

Safety information, installation and maintenance

E1

C

For full details see the Installation and Maintenance Instructions

(IM-P014-05) supplied with the product.

Disposal

This product is recyclable. No ecological hazard is anticipated

with the disposal of this product, provided due care is taken.

Spare parts

The spare parts available are shown in solid outline. Parts drawn

in broken line are not supplied as spares.

A A1

B

G

Available spare

D

Enclosure 'O' ring

1

How to order spares

Always order spares by using the description given in the column

headed 'Available spare'.

Example: 1 - Enclosure 'O' ring for a STAPS receiver/repeater

Ex version.

1

H

L

M

N

J

K

5.1.22

How to order

Example: 1 - STAPS receiver / repeater Ex version for use with

a STAPS wireless steam trap monitoring system.

TI-P014-06 MI Issue 1

STAPS Wireless Receiver/Repeater

version for use with a STAPS Steam Trap Monitoring System
