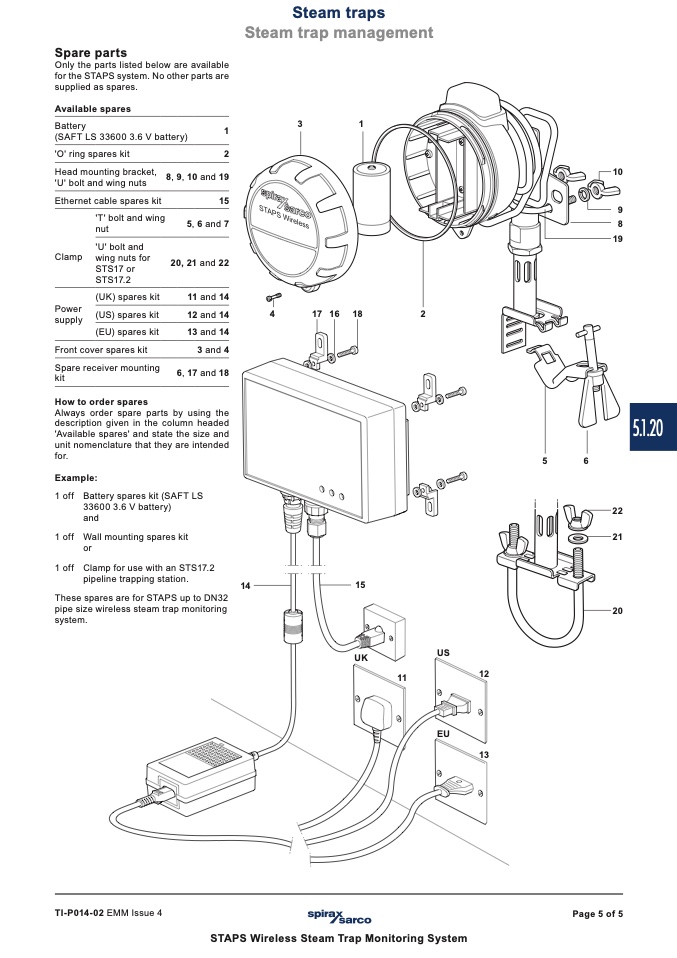

Spare parts

Only the parts listed below are available

for the STAPS system. No other parts are

supplied as spares.

Available spares

Battery

(SAFT LS 33600 3.6 V battery)

1

3

1

'O' ring spares kit

Head mounting bracket,

'U' bolt and wing nuts

Ethernet cable spares kit

'T' bolt and wing

nut

'U' bolt and

Clamp wing nuts for

STS17 or

STS17.2

(UK) spares kit

(US) spares kit

(EU) spares kit

2

8, 9, 10 and 19

15

5, 6 and 7

20, 21 and 22

11 and 14

12 and 14

13 and 14

3 and 4

6, 17 and 18

10

9

8

19

Power

supply

4

171

6

18

2

Front cover spares kit

Spare receiver mounting

kit

How to order spares

Always order spare parts by using the

description given in the column headed

'Available spares' and state the size and

unit nomenclature that they are intended

for.

Example:

1off Battery spares kit (SAFT LS

33600 3.6 V battery)

and

1off Wall mounting spares kit

or

1off Clamp for use with an STS17.2

pipeline trapping station.

These spares are for STAPS up to DN32

pipe size wireless steam trap monitoring

system.

5.1.20

TI-P014-02 EMM Issue 4

Page 5 of 5

Steam traps

Steam trap management

14

15

UK

11

22

21

20

STAPS Wireless Steam Trap Monitoring System

US

12

EU

13

5

6
