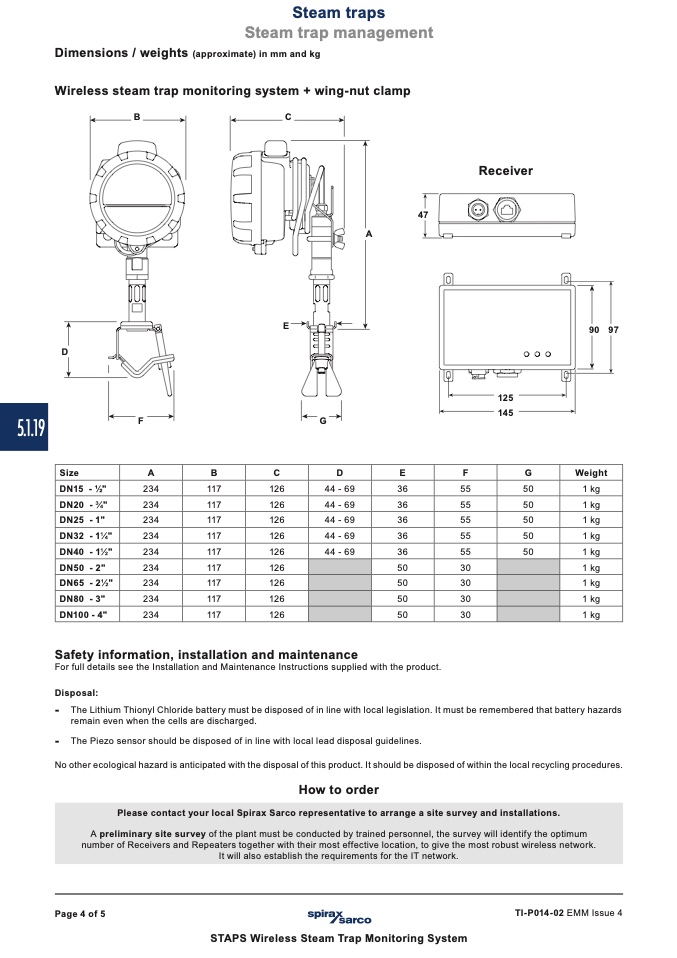

Dimensions / weights (approximate) in mm and kg
Wireless steam trap monitoring system + wing-nut clamp
Size
DN15 - 1⁄2"
DN20 - 3⁄4"
DN25 - 1"
DN32 - 11⁄4"
DN40 - 11⁄2"
DN50 - 2"
DN65 - 21⁄2"
DN80 - 3"
DN100 - 4"
F
G
A
B
C
D
E
F
G
Weight
B
C
234
117
126
234
117
126
234
117
126
234
117
126
234
117
126
234
117
126
234
117
126
234
117
126
234
117
126
44-69
44-69
44-69
44-69
44-69
36
55
36
55
36
55
36
55
36
55
50
30
50
30
50
30
50
30
50
1kg
50
1kg
50
1kg
50
1kg
50
1kg
1kg
1kg
1kg
1kg
Safety information, installation and maintenance
Steam traps
Steam trap management
For full details see the Installation and Maintenance Instructions supplied with the product.
E
90 97
Disposal:
-
The Lithium Thionyl Chloride battery must be disposed of in line with local legislation. It must be remembered that battery hazards
remain even when the cells are discharged.
-
The Piezo sensor should be disposed of in line with local lead disposal guidelines.
No other ecological hazard is anticipated with the disposal of this product. It should be disposed of within the local recycling procedures.
How to order
Please contact your local Spirax Sarco representative to arrange a site survey and installations.
A preliminary site survey of the plant must be conducted by trained personnel, the survey will identify the optimum
number of Receivers and Repeaters together with their most effective location, to give the most robust wireless network.
It will also establish the requirements for the IT network.
