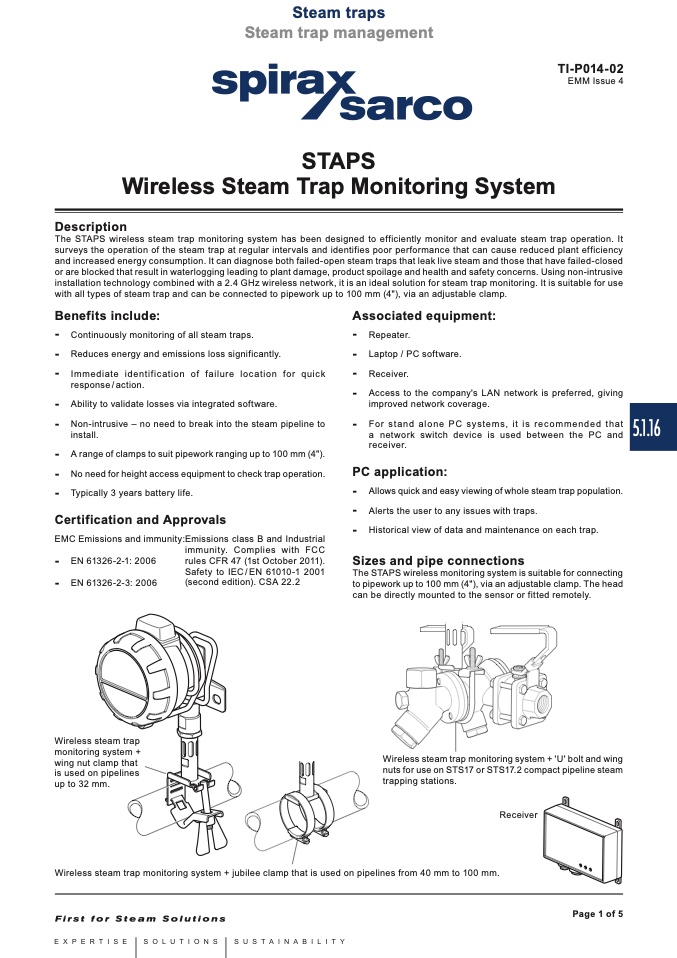

Steam traps

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

Steam trap management

© Copyright 2017

STAPS

Wireless Steam Trap Monitoring System

Description

The STAPS wireless steam trap monitoring system has been designed to efficiently monitor and evaluate steam trap operation. It

surveys the operation of the steam trap at regular intervals and identifies poor performance that can cause reduced plant efficiency

and increased energy consumption. It can diagnose both failed-open steam traps that leak live steam and those that have failed-closed

or are blocked that result in waterlogging leading to plant damage, product spoilage and health and safety concerns. Using non-intrusive

installation technology combined with a 2.4 GHz wireless network, it is an ideal solution for steam trap monitoring. It is suitable for use

with all types of steam trap and can be connected to pipework up to 100 mm (4"), via an adjustable clamp.

Benefits include:

-

Continuously monitoring of all steam traps.

-

Reduces energy and emissions loss significantly.

-

Immediate identification of failure location for quick

response / action.

-

Ability to validate losses via integrated software.

-

Non-intrusive – no need to break into the steam pipeline to

install.

-

A range of clamps to suit pipework ranging up to 100 mm (4").

-

No need for height access equipment to check trap operation.

-

Typically 3 years battery life.

Certification and Approvals

EMC Emissions and immunity:Emissions class B and Industrial

Associated equipment:

-

Repeater.

-

Laptop / PC software.

-

Receiver.

-

Access to the company's LAN network is preferred, giving

improved network coverage.

-

For stand alone PC systems, it is recommended that

a network switch device is used between the PC and

receiver.

PC application:

-

Allows quick and easy viewing of whole steam trap population.

-

Alerts the user to any issues with traps.

-

Historical view of data and maintenance on each trap.

Sizes and pipe connections

The STAPS wireless monitoring system is suitable for connecting

to pipework up to 100 mm (4"), via an adjustable clamp. The head

can be directly mounted to the sensor or fitted remotely.

5.1.16

-

EN 61326-2-1: 2006

-

EN 61326-2-3: 2006

immunity. Complies with FCC

rules CFR 47 (1st October 2011).

Safety to IEC/EN 61010-1 2001

(second edition). CSA 22.2

Wireless steam trap

monitoring system +

wing nut clamp that

is used on pipelines

up to 32 mm.

Wireless steam trap monitoring system + 'U' bolt and wing

nuts for use on STS17 or STS17.2 compact pipeline steam

trapping stations.

Receiver

Wireless steam trap monitoring system + jubilee clamp that is used on pipelines from 40 mm to 100 mm.

TI-P014-02

EMM Issue 4

Page 1 of 5
