5.1.15
Steam traps
Steam trap management
Local regulations may restrict the use of this product to below the conditions quoted.
In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
© Copyright 2014
TI-P087-35
MI Issue 3
The UP100 consists of 4 components:
1. The pistol housing.
2. The stethoscope probe module with extension rods.
3. The headset with extension cable.
4. The flexible carrying case.
Limiting conditions
Ambient temperature operating range
Ambient temperature storage range
Technical specifications
0 to 50°C
-18 to 54°C

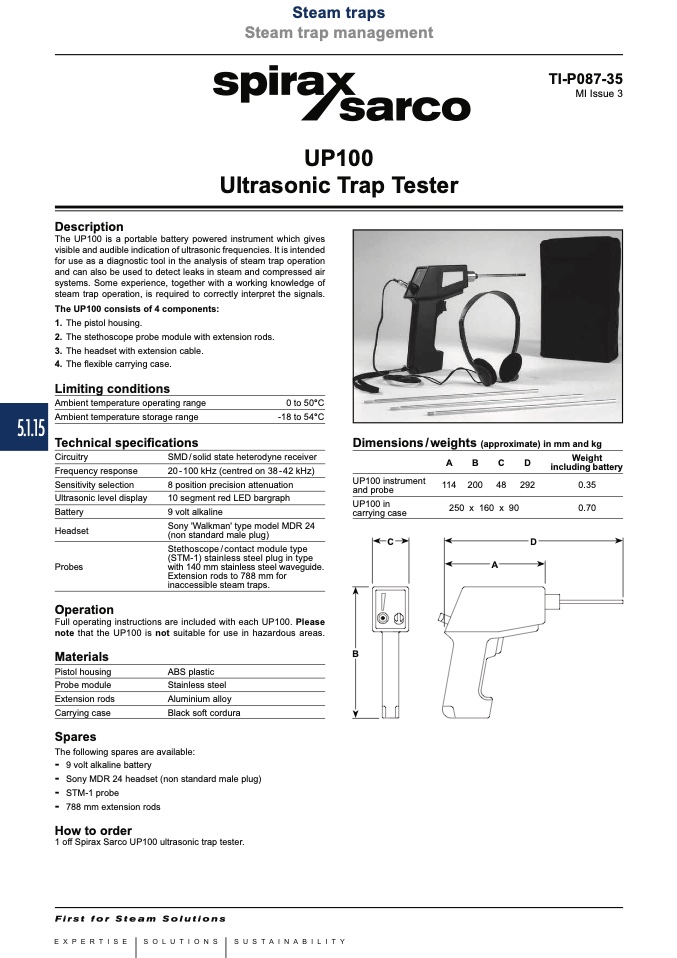

UP100
Ultrasonic Trap Tester
Description
The UP100 is a portable battery powered instrument which gives
visible and audible indication of ultrasonic frequencies. It is intended
for use as a diagnostic tool in the analysis of steam trap operation
and can also be used to detect leaks in steam and compressed air
systems. Some experience, together with a working knowledge of
steam trap operation, is required to correctly interpret the signals.
Circuitry
Frequency response
Sensitivity selection
Ultrasonic level display
Battery
Headset
Probes
SMD/solid state heterodyne receiver
20-100 kHz (centred on 38-42 kHz)
8 position precision attenuation
10 segment red LED bargraph
9 volt alkaline
Sony 'Walkman' type model MDR 24
(non standard male plug)
Stethoscope / contact module type
(STM-1) stainless steel plug in type
with 140 mm stainless steel waveguide.
Extension rods to 788 mm for
inaccessible steam traps.
Dimensions/weights (approximate) in mm and kg
A
B
C
D
Weight
including battery
UP100 instrument
and probe
UP100 in
carrying case
114 200 48 292
250 x 160 x 90
0.35
0.70
Operation
Full operating instructions are included with each UP100. Please
note that the UP100 is not suitable for use in hazardous areas.
C
D
A
B
Materials
Pistol housing
Probe module
Extension rods
Carrying case
Spares
ABS plastic
Stainless steel
Aluminium alloy
Black soft cordura
The following spares are available:
-
9 volt alkaline battery
-
Sony MDR 24 headset (non standard male plug)
-
STM-1 probe
-
788 mm extension rods
How to order
1 off Spirax Sarco UP100 ultrasonic trap tester.
