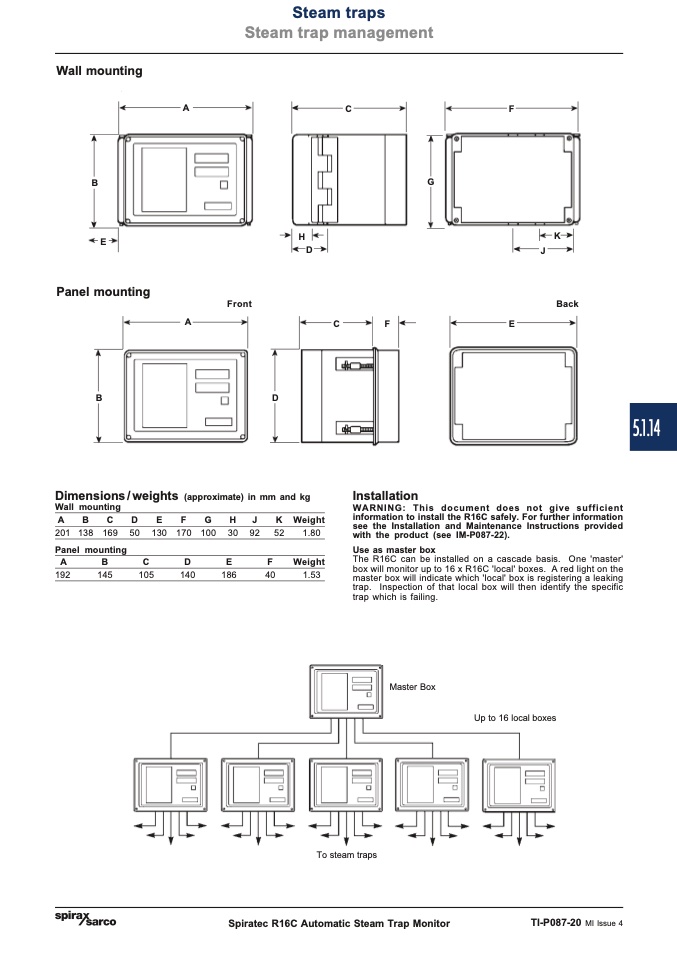

Steam traps

Steam trap management

Wall mounting

B

E

Panel mounting

A

C

F

G

H

K

D

J

Front

A

C

Back

F

E

B

D

Dimensions/weights (approximate) in mm and kg

Wall mounting

A

B

C

D

E

F

G

H J

K Weight

201 138 169 50 130 170 100 30 92 52

1.80

Panel mounting

A

B

C

D

E

F

Weight

Installation

WARNING: This document does not give sufficient

information to install the R16C safely. For further information

see the Installation and Maintenance Instructions provided

with the product (see IM-P087-22).

The R16C can be installed on a cascade basis. One 'master'

box will monitor up to 16 x R16C 'local' boxes. A red light on the

master box will indicate which 'local' box is registering a leaking

trap. Inspection of that local box will then identify the specific

trap which is failing.

Master Box

Up to 16 local boxes

Use as master box

192

145

105

140

186

40

1.53

To steam traps

Spiratec R16C Automatic Steam Trap Monitor

TI-P087-20 MI Issue 4

5.1.14
