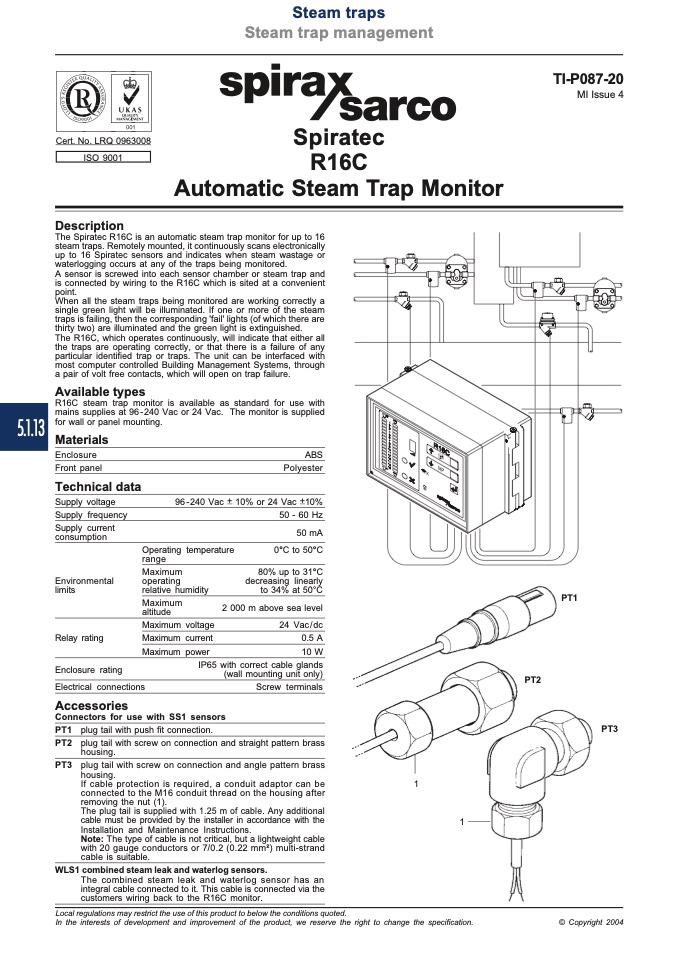

Description

Enclosure rating

Electrical connections

IP65 with correct cable glands

(wall mounting unit only)

Accessories

Connectors for use with SS1 sensors

Steam traps

Steam trap management

Spiratec

R16C

Automatic Steam Trap Monitor

TI-P087-20

MI Issue 4

The Spiratec R16C is an automatic steam trap monitor for up to 16

steam traps. Remotely mounted, it continuously scans electronically

up to 16 Spiratec sensors and indicates when steam wastage or

waterlogging occurs at any of the traps being monitored.

A sensor is screwed into each sensor chamber or steam trap and

is connected by wiring to the R16C which is sited at a convenient

point.

When all the steam traps being monitored are working correctly a

single green light will be illuminated. If one or more of the steam

traps is failing, then the corresponding 'fail' lights (of which there are

thirty two) are illuminated and the green light is extinguished.

Available types

R16C steam trap monitor is available as standard for use with

The R16C, which operates continuously, will indicate that either all

the traps are operating correctly, or that there is a failure of any

particular identified trap or traps. The unit can be interfaced with

most computer controlled Building Management Systems, through

a pair of volt free contacts, which will open on trap failure.

mains supplies at 96-240 Vac or 24 Vac. The monitor is supplied

5.1.13

for wall or panel mounting.

Materials

Enclosure

Front panel

Technical data

Supply voltage

Supply frequency

Supply current

consumption

Environmental

limits

Relay rating

ABS

Polyester

96-240 Vac + 10% or 24 Vac +10%

50 - 60 Hz

Operating temperature

range

Maximum

operating

relative humidity

Maximum

altitude

Maximum voltage

Maximum current

Maximum power

PT1

PT2

PT3

PT1 plug tail with push fit connection.

PT2 plug tail with screw on connection and straight pattern brass

housing.

PT3 plug tail with screw on connection and angle pattern brass

housing.

50 mA

0°C to 50°C

80% up to 31°C

decreasing linearly

to 34% at 50°C

2 000 m above sea level

24 Vac/dc

0.5 A

10 W

If cable protection is required, a conduit adaptor can be

1

connected to the M16 conduit thread on the housing after

removing the nut (1).

The plug tail is supplied with 1.25 m of cable. Any additional

cable must be provided by the installer in accordance with the

Installation and Maintenance Instructions.

Note: The type of cable is not critical, but a lightweight cable

with 20 gauge conductors or 7/0.2 (0.22 mm2) multi-strand

cable is suitable.

1

WLS1 combined steam leak and waterlog sensors.

The combined steam leak and waterlog sensor has an

integral cable connected to it. This cable is connected via the

customers wiring back to the R16C monitor.

Screw terminals

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification.
