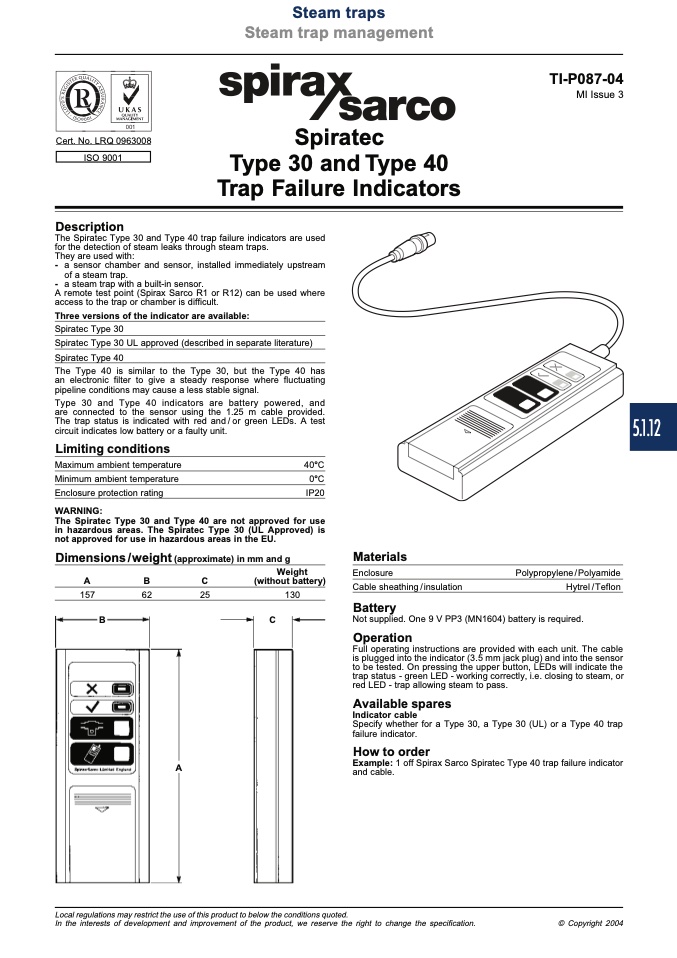

Steam traps

Steam trap management

ISO 9001

TI-P087-04

MI Issue 3

Cert. No. LRQ 0963008

Description

Spiratec

Type 30 and Type 40

Trap Failure Indicators

The Spiratec Type 30 and Type 40 trap failure indicators are used

for the detection of steam leaks through steam traps.

They are used with:

- a sensor chamber and sensor, installed immediately upstream

of a steam trap.

- a steam trap with a built-in sensor.

A remote test point (Spirax Sarco R1 or R12) can be used where

access to the trap or chamber is difficult.

Three versions of the indicator are available:

Spiratec Type 30

Spiratec Type 30 UL approved (described in separate literature)

Spiratec Type 40

The Type 40 is similar to the Type 30, but the Type 40 has

an electronic filter to give a steady response where fluctuating

pipeline conditions may cause a less stable signal.

Type 30 and Type 40 indicators are battery powered, and

are connected to the sensor using the 1.25 m cable provided.

The trap status is indicated with red and / or green LEDs. A test

circuit indicates low battery or a faulty unit.

Limiting conditions

Maximum ambient temperature

40°C

Minimum ambient temperature

0°C

Enclosure protection rating

IP20

WARNING:

The Spiratec Type 30 and Type 40 are not approved for use

in hazardous areas. The Spiratec Type 30 (UL Approved) is

not approved for use in hazardous areas in the EU.

Dimensions/weight(approximate) in mm and g

Materials

Enclosure

Cable sheathing /insulation

Battery

A

157

Weight

B

C

(without battery)

Polypropylene / Polyamide

Hytrel /Teflon

62

25

B

C

A

130

Not supplied. One 9 V PP3 (MN1604) battery is required.

Operation

Full operating instructions are provided with each unit. The cable

is plugged into the indicator (3.5 mm jack plug) and into the sensor

to be tested. On pressing the upper button, LEDs will indicate the

trap status - green LED - working correctly, i.e. closing to steam, or

red LED - trap allowing steam to pass.

Available spares

Indicator cable

Specify whether for a Type 30, a Type 30 (UL) or a Type 40 trap

failure indicator.

How to order

Example: 1 off Spirax Sarco Spiratec Type 40 trap failure indicator

and cable.

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification.

© Copyright 2004

5.1.12
