Control valves

Positioners and controllers

Installation

Full details are contained in the appropriate Installation and

Maintenance Instructions supplied with the product.

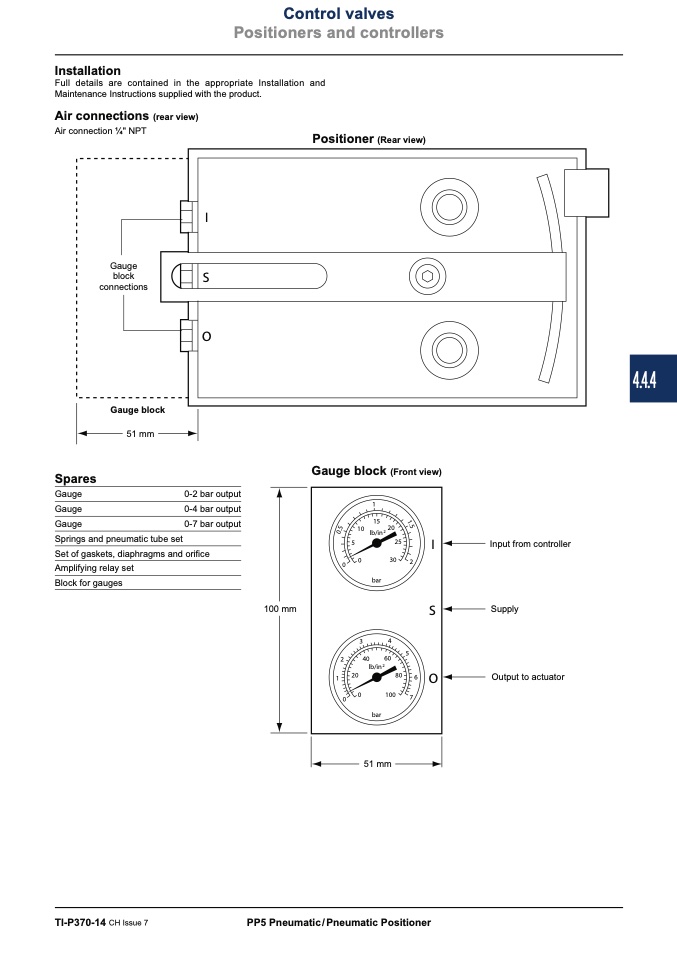

Air connections (rear view)

Air connection 1⁄4" NPT

Positioner (Rear view)

Gauge

block

connections

S

I

O

Gauge block

51 mm

Spares

Gauge

0-2 bar output

Gauge

0-4 bar output

Gauge

0-7 bar output

Springs and pneumatic tube set

Set of gaskets, diaphragms and orifice

Amplifying relay set

Block for gauges

Gauge block (Front view)

1

15

10

lb/in

2

20

5

25

I

2

S

3

4

5

80

6

O

100

0

30

bar

0

2

40

60

lb/in

2

1

20

0

7

0

bar

100 mm

Input from controller

Supply

Output to actuator

51 mm

TI-P370-14 CH Issue 7

PP5 Pneumatic/Pneumatic Positioner

4.4.4

1

.

5

0

.

5
