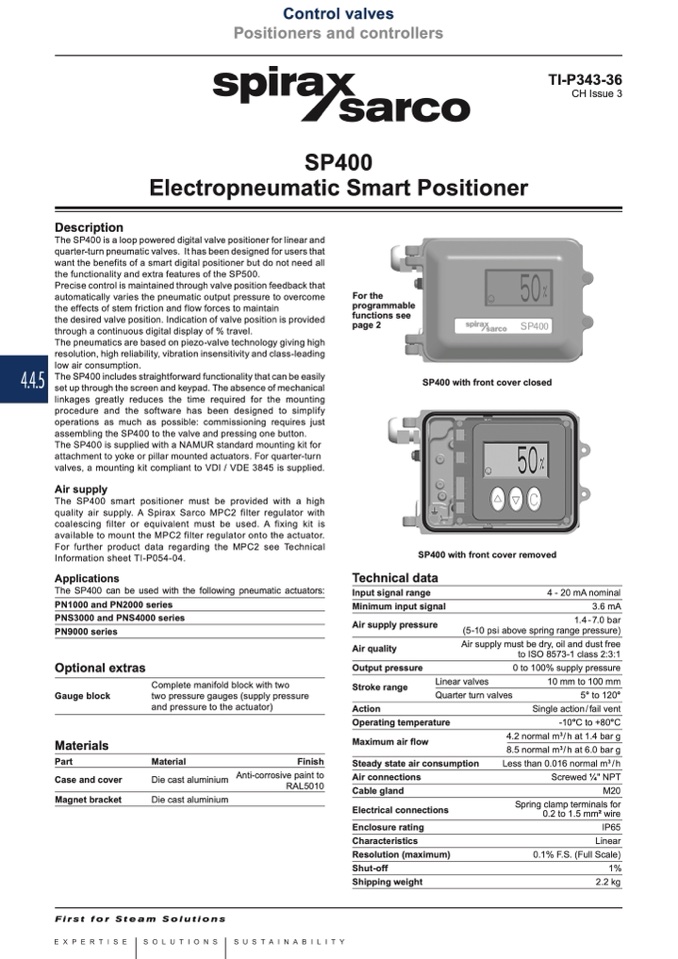

4.4.5

Control valves

Positioners and controllers

SP400

Electropneumatic Smart Positioner

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2015

TI-P343-36

CH Issue 3

Description

The SP400 is a loop powered digital valve positioner for linear and

quarter-turn pneumatic valves. It has been designed for users that

want the benefits of a smart digital positioner but do not need all

the functionality and extra features of the SP500.

Precise control is maintained through valve position feedback that

automatically varies the pneumatic output pressure to overcome

the effects of stem friction and flow forces to maintain

the desired valve position. Indication of valve position is provided

through a continuous digital display of % travel.

The pneumatics are based on piezo-valve technology giving high

resolution, high reliability, vibration insensitivity and class-leading

low air consumption.

The SP400 includes straightforward functionality that can be easily

set up through the screen and keypad. The absence of mechanical

linkages greatly reduces the time required for the mounting

procedure and the software has been designed to simplify

operations as much as possible: commissioning requires just

assembling the SP400 to the valve and pressing one button.

The SP400 is supplied with a NAMUR standard mounting kit for

attachment to yoke or pillar mounted actuators. For quarter-turn

valves, a mounting kit compliant to VDI / VDE 3845 is supplied.

Air supply

The SP400 smart positioner must be provided with a high

quality air supply. A Spirax Sarco MPC2 filter regulator with

coalescing filter or equivalent must be used. A fixing kit is

available to mount the MPC2 filter regulator onto the actuator.

For further product data regarding the MPC2 see Technical

Information sheet TI-P054-04.

Applications

The SP400 can be used with the following pneumatic actuators:

PN1000 and PN2000 series

PNS3000 and PNS4000 series

PN9000 series

For the

programmable

functions see

page 2

SP400 with front cover closed

SP400 with front cover removed

Optional extras

Gauge block

Materials

Part

Case and cover

Magnet bracket

Technical data

Input signal range

Minimum input signal

Air supply pressure

Air quality

Output pressure

Stroke range

4 - 20 mA nominal

3.6 mA

1.4 - 7.0 bar

(5-10 psi above spring range pressure)

Air supply must be dry, oil and dust free

to ISO 8573-1 class 2:3:1

0 to 100% supply pressure

10 mm to 100 mm

5° to 120°

Single action/fail vent

-10°C to +80°C

4.2 normal m

3

/h at 1.4 bar g

8.5 normal m

3

/h at 6.0 bar g

Less than 0.016 normal m

3

/ h

Screwed 1⁄4" NPT

M20

Spring clamp terminals for

0.2 to 1.5 mm2 wire

IP65

Linear

0.1% F.S. (Full Scale)

1%

2.2 kg

Complete manifold block with two

two pressure gauges (supply pressure

and pressure to the actuator)

Material

Finish

Linear valves

Quarter turn valves

Die cast aluminium

Die cast aluminium

Anti-corrosive paint to

RAL5010

Action

Operating temperature

Maximum air flow

Steady state air consumption

Air connections

Cable gland

Electrical connections

Enclosure rating

Characteristics

Resolution (maximum)

Shut-off

Shipping weight
