4.4.3
Control valves
Positioners and controllers
Local regulations may restrict the use of this product to below the conditions quoted.
In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
© Copyright 2014
TI-P370-14
CH Issue 7
PP5

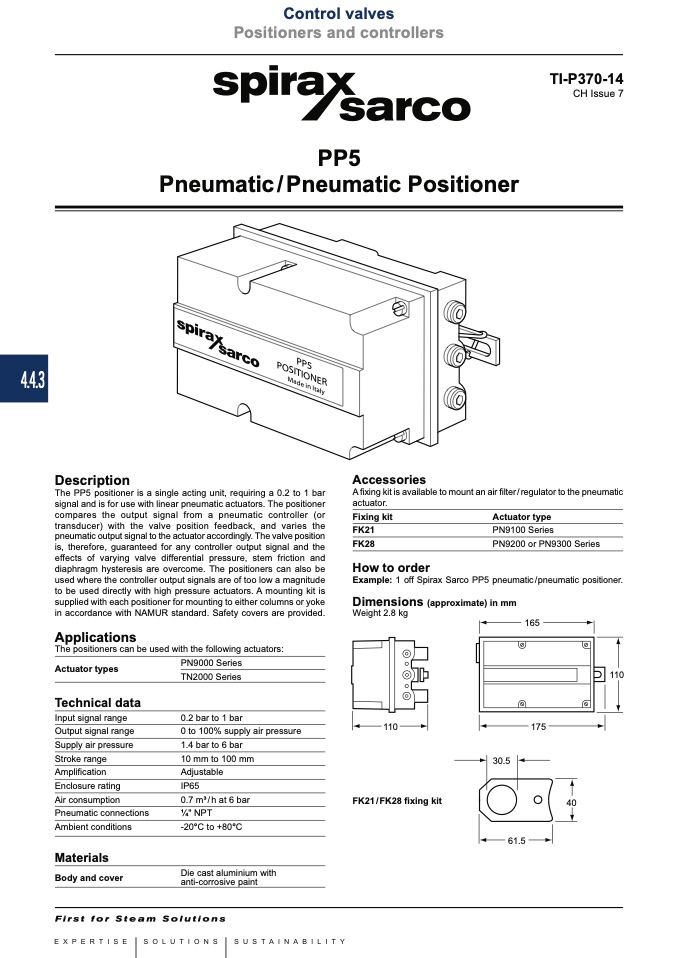

Pneumatic/Pneumatic Positioner
Description
The PP5 positioner is a single acting unit, requiring a 0.2 to 1 bar
signal and is for use with linear pneumatic actuators. The positioner
compares the output signal from a pneumatic controller (or
transducer) with the valve position feedback, and varies the
pneumatic output signal to the actuator accordingly. The valve position
is, therefore, guaranteed for any controller output signal and the
effects of varying valve differential pressure, stem friction and
diaphragm hysteresis are overcome. The positioners can also be
used where the controller output signals are of too low a magnitude
to be used directly with high pressure actuators. A mounting kit is
supplied with each positioner for mounting to either columns or yoke
in accordance with NAMUR standard. Safety covers are provided.
Applications
The positioners can be used with the following actuators:
Accessories
A fixing kit is available to mount an air filter / regulator to the pneumatic
actuator.
Fixing kit
Actuator type
FK21
PN9100 Series
FK28
PN9200 or PN9300 Series
How to order
Example: 1 off Spirax Sarco PP5 pneumatic / pneumatic positioner.
Actuator types
Technical data
Input signal range
Output signal range
Supply air pressure
Stroke range
Amplification
Enclosure rating
Air consumption
Pneumatic connections
Ambient conditions
Materials
Body and cover
PN9000 Series
TN2000 Series
0.2 bar to 1 bar
0 to 100% supply air pressure
1.4 bar to 6 bar
10 mm to 100 mm
Adjustable
IP65
0.7 m3/h at 6 bar
1⁄4" NPT
-20°C to +80°C
Die cast aluminium with
anti-corrosive paint
Weight 2.8 kg
110
FK21/FK28 fixing kit
165
175
110
Dimensions (approximate) in mm
30.5
61.5
40
PP5
POSITIONER
Made in Italy
