2.2.1

Boiler house

Steam injectors

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2012

TI-P401-05

AB Issue 11

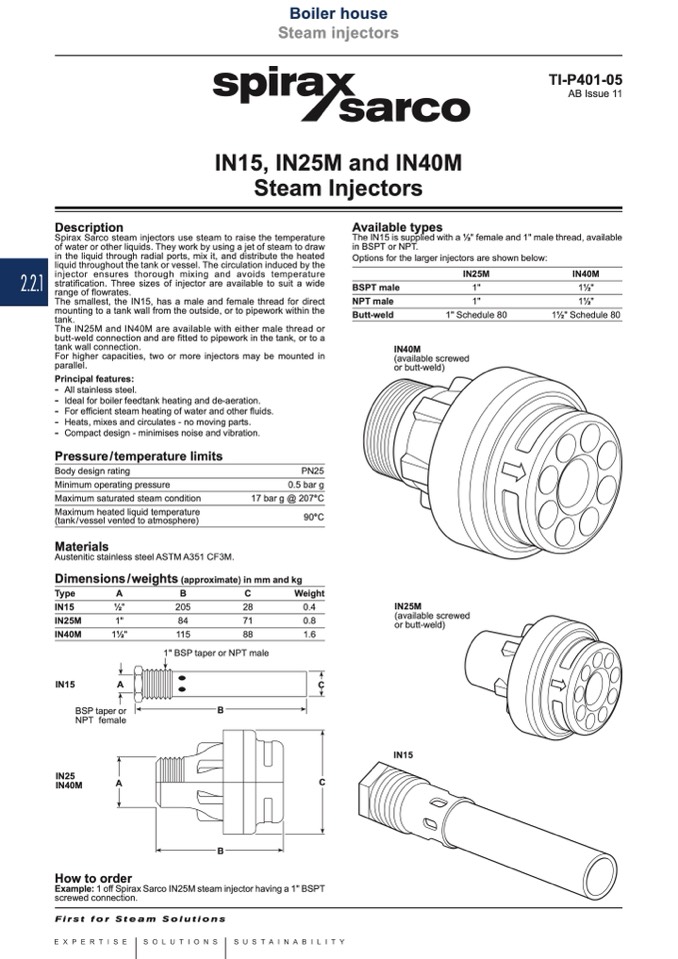

IN15, IN25M and IN40M

Steam Injectors

Description

Available types

The IN15 is supplied with a 1⁄2" female and 1" male thread, available

in BSPT or NPT.

Options for the larger injectors are shown below:

Spirax Sarco steam injectors use steam to raise the temperature

of water or other liquids. They work by using a jet of steam to draw

in the liquid through radial ports, mix it, and distribute the heated

liquid throughout the tank or vessel. The circulation induced by the

injector ensures thorough mixing and avoids temperature

stratification. Three sizes of injector are available to suit a wide

range of flowrates.

IN25M

1"

1"

1" Schedule 80

(available screwed

or butt-weld)

IN40M

11⁄2"

11⁄2"

11⁄2" Schedule 80

The smallest, the IN15, has a male and female thread for direct

mounting to a tank wall from the outside, or to pipework within the

tank.

The IN25M and IN40M are available with either male thread or

butt-weld connection and are fitted to pipework in the tank, or to a

tank wall connection.

BSPT male

NPT male

Butt-weld

For higher capacities, two or more injectors may be mounted in

parallel.

IN40M

Principal features:

- All stainless steel.

- Ideal for boiler feedtank heating and de-aeration.

- For efficient steam heating of water and other fluids.

- Heats, mixes and circulates - no moving parts.

- Compact design - minimises noise and vibration.

Pressure/temperature limits

Body design rating

Minimum operating pressure

Maximum saturated steam condition

Maximum heated liquid temperature

(tank/vessel vented to atmosphere)

PN25

0.5 bar g

17 bar g @ 207°C

Materials

90°C

Austenitic stainless steel ASTM A351 CF3M.

Dimensions / weights (approximate) in mm and kg

Type

A

IN15

1⁄2"

IN25M

1"

IN40M

11⁄2"

IN15

A

BSP taper or

NPT female

B

C

205

28

84

71

115

88

1" BSP taper or NPT male

B

Weight

0.4

0.8

1.6

C

A

C

B

IN25M

(available screwed

or butt-weld)

IN15

IN25

IN40M

How to order

Example: 1 off Spirax Sarco IN25M steam injector having a 1" BSPT

screwed connection.
