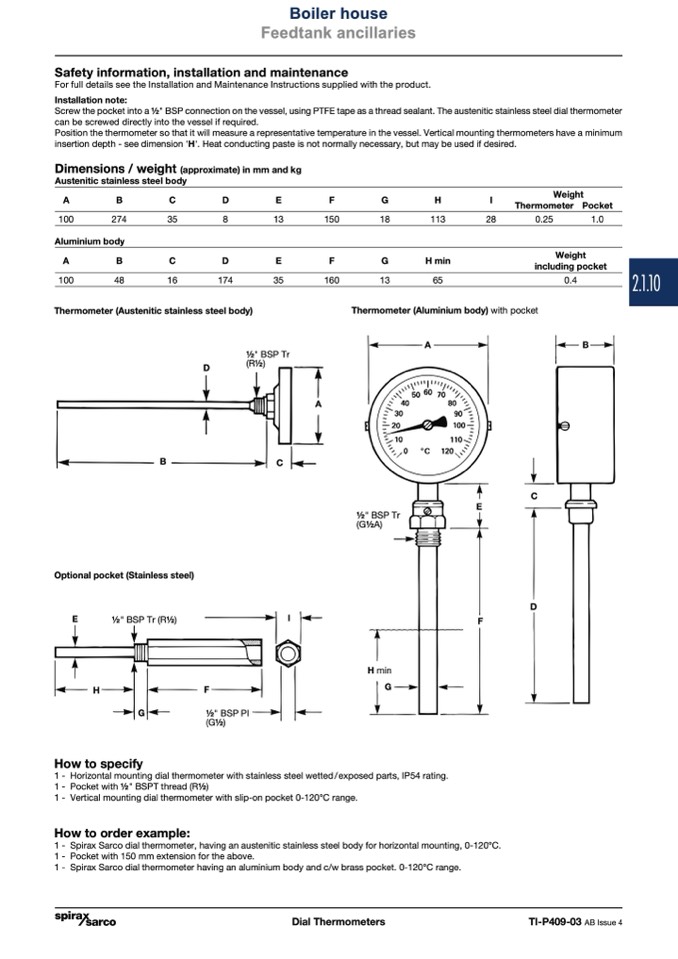

Boiler house

Feedtank ancillaries

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions supplied with the product.

Installation note:

Screw the pocket into a 1⁄2" BSP connection on the vessel, using PTFE tape as a thread sealant. The austenitic stainless steel dial thermometer

can be screwed directly into the vessel if required.

Position the thermometer so that it will measure a representative temperature in the vessel. Vertical mounting thermometers have a minimum

insertion depth - see dimension 'H'. Heat conducting paste is not normally necessary, but may be used if desired.

Dimensions / weight (approximate) in mm and kg

Austenitic stainless steel body

A

B

C

D

E

F

G

H

I

Weight

Thermometer Pocket

100

274

35

8

13

150

18

113

28

0.25

1.0

Aluminium body

A

B

C

D

E

F

G

H min

Weight

including pocket

100

48

16

174

35

160

13

65

0.4

Thermometer (Austenitic stainless steel body)

Thermometer (Aluminium body) with pocket

A

B

D

1⁄2" BSP Tr

(R1⁄2)

A

B

Optional pocket (Stainless steel)

C

E

1⁄2" BSP Tr (R1⁄2)

I

1⁄2" BSP Tr

(G1⁄2A)

H min

G

C

E

D

F

H

F

G

1⁄2" BSP Pl

How to specify

(G1⁄2)

1 - Horizontal mounting dial thermometer with stainless steel wetted / exposed parts, IP54 rating.

1 - Pocket with 1⁄2" BSPT thread (R1⁄2)

1 - Vertical mounting dial thermometer with slip-on pocket 0-120°C range.

How to order example:

1 - Spirax Sarco dial thermometer, having an austenitic stainless steel body for horizontal mounting, 0-120°C.

1 - Pocket with 150 mm extension for the above.

1 - Spirax Sarco dial thermometer having an aluminium body and c/w brass pocket. 0-120°C range.

Dial Thermometers

TI-P409-03 AB Issue 4

2.1.10
