Boiler house
Feedtank ancillaries
2.1.9
ISO 9001
TI-P409-03
AB Issue 4
Cert. No. LRQ 0963008

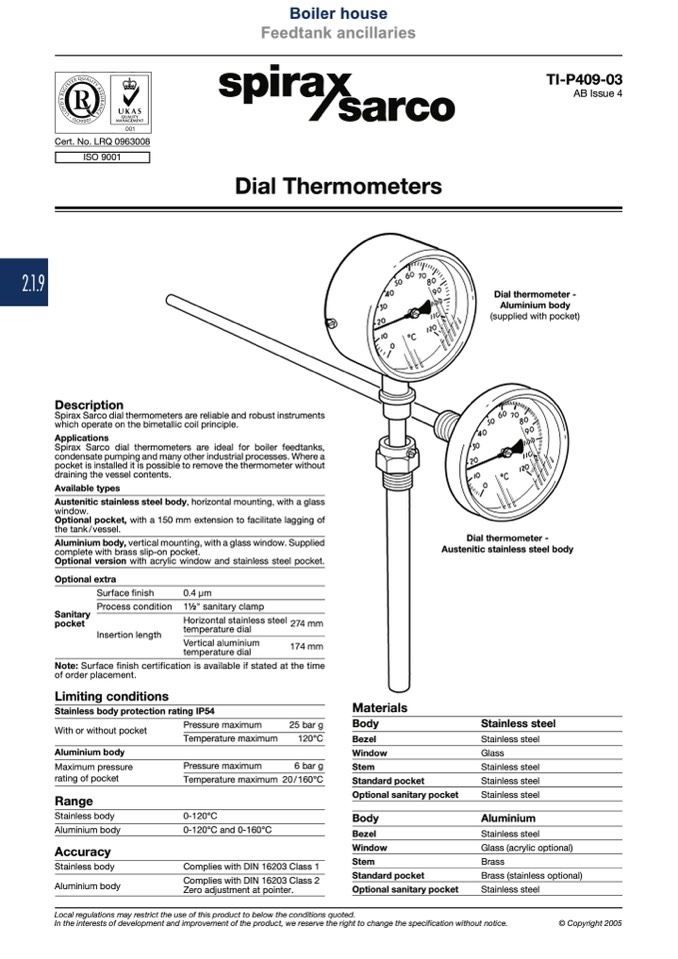

Dial Thermometers
Dial thermometer -
Aluminium body
(supplied with pocket)
Description
Spirax Sarco dial thermometers are reliable and robust instruments
which operate on the bimetallic coil principle.
Applications
Spirax Sarco dial thermometers are ideal for boiler feedtanks,
condensate pumping and many other industrial processes. Where a
pocket is installed it is possible to remove the thermometer without
draining the vessel contents.
Available types
Austenitic stainless steel body, horizontal mounting, with a glass
window.
Optional pocket, with a 150 mm extension to facilitate lagging of
the tank/vessel.
Aluminium body, vertical mounting, with a glass window. Supplied
complete with brass slip-on pocket.
Optional version with acrylic window and stainless steel pocket.
Dial thermometer -
Austenitic stainless steel body
Optional extra
Surface finish
Sanitary
Process condition
0.4 μm
11⁄2" sanitary clamp
Horizontal stainless steel
274 mm
temperature dial
Note: Surface finish certification is available if stated at the time
Insertion length
of order placement.
Limiting conditions
Stainless body protection rating IP54
Vertical aluminium
174 mm
temperature dial
With or without pocket
Aluminium body
Maximum pressure
rating of pocket
Range
Stainless body
Aluminium body
Accuracy
Stainless body
Aluminium body
Pressure maximum
Temperature maximum
Pressure maximum
Temperature maximum
0-120°C
0-120°C and 0-160°C
25 bar g
120°C
6 bar g
20 / 160°C
Materials
Body
Bezel
Window
Stem
Standard pocket
Optional sanitary pocket
Body
Bezel
Window
Stem
Standard pocket
Optional sanitary pocket
Stainless steel
Stainless steel
Glass
Stainless steel
Stainless steel
Stainless steel
Aluminium
Stainless steel
Glass (acrylic optional)
Brass
Brass (stainless optional)
Stainless steel
Complies with DIN 16203 Class 1
Complies with DIN 16203 Class 2
Zero adjustment at pointer.
Local regulations may restrict the use of this product to below the conditions quoted.
In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
© Copyright 2005
