Boiler house

Feedtank ancillaries

ISO 9001

2.1.7

Glass

6.9 bar g

152°C

4.1 bar g

13.8 bar g

TI-P409-04

AB Issue 3

Cert. No. LRQ 0963008

WG2

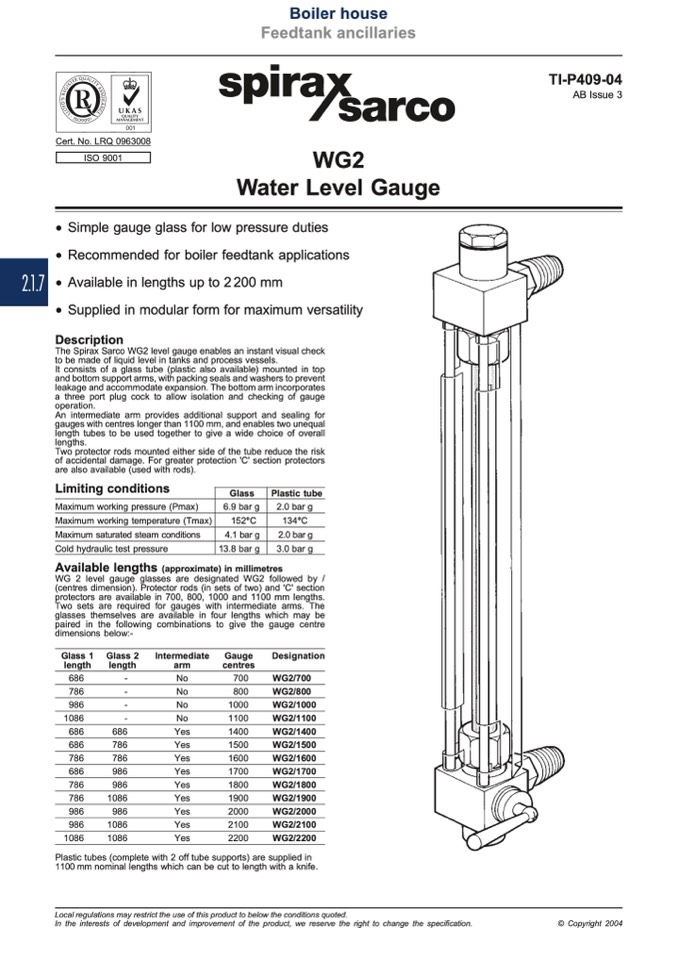

Water Level Gauge

•

Simple gauge glass for low pressure duties

•

Recommended for boiler feedtank applications

•

Available in lengths up to 2 200 mm

•

Supplied in modular form for maximum versatility

Description

The Spirax Sarco WG2 level gauge enables an instant visual check

to be made of liquid level in tanks and process vessels.

It consists of a glass tube (plastic also available) mounted in top

and bottom support arms, with packing seals and washers to prevent

leakage and accommodate expansion. The bottom arm incorporates

a three port plug cock to allow isolation and checking of gauge

operation.

An intermediate arm provides additional support and sealing for

gauges with centres longer than 1100 mm, and enables two unequal

length tubes to be used together to give a wide choice of overall

lengths.

Two protector rods mounted either side of the tube reduce the risk

of accidental damage. For greater protection 'C' section protectors

are also available (used with rods).

Limiting conditions

Maximum working pressure (Pmax)

Maximum working temperature (Tmax)

Maximum saturated steam conditions

Cold hydraulic test pressure

Plastic tube

2.0 bar g

134°C

2.0 bar g

3.0 bar g

Available lengths (approximate) in millimetres

WG 2 level gauge glasses are designated WG2 followed by /

(centres dimension). Protector rods (in sets of two) and 'C' section

protectors are available in 700, 800, 1000 and 1100 mm lengths.

Two sets are required for gauges with intermediate arms. The

glasses themselves are available in four lengths which may be

paired in the following combinations to give the gauge centre

dimensions below:-

Glass 1

length

686

786

986

1086

686

786

686

786

986

1086

Glass 2

length

Intermediate Gauge

arm

centres

Designation

WG2/700

WG2/800

WG2/1000

WG2/1100

WG2/1400

WG2/1500

WG2/1600

WG2/1700

WG2/1800

WG2/1900

WG2/2000

WG2/2100

WG2/2200

700

800

1000

1100

686

Yes

1400

786

Yes

1500

786

Yes

1600

986

Yes

1700

986

Yes

1800

1086

Yes

1900

986

Yes

2000

1086

Yes

2100

1086

Yes

2200

Plastic tubes (complete with 2 off tube supports) are supplied in

1100 mm nominal lengths which can be cut to length with a knife.

Local regulations may restrict the use of this product to below the conditions quoted.
