Spare parts

Plug stem and seat kit

Fast opening trim

Bellows seal assembly

* PTFE soft seat seal

Specify if reduced trim.

How to order spares

4.1.38

(No gaskets supplied)

Linear trim

(No gaskets supplied)

Always order spares by using the description given in the column headed

'Available spares', and state the size and type of valve including the full

product description of the product.

Example: 1 - Graphite stem seal kit for a Spirax Sarco DN25 Spira-trol

TM

two-port KE43B TSUSS.2 Kvs10 control valve.

How to fit spares

Full fitting instructions are given in the Installation and Maintenance

Instructions supplied with the spare.

F

D6

B

H

E

G

D7

D8

Control valves

Control valves

Spira-trol

TM

two-port control valve with bellows seal - Type D

DN15toDN100 - 1⁄2"to4"

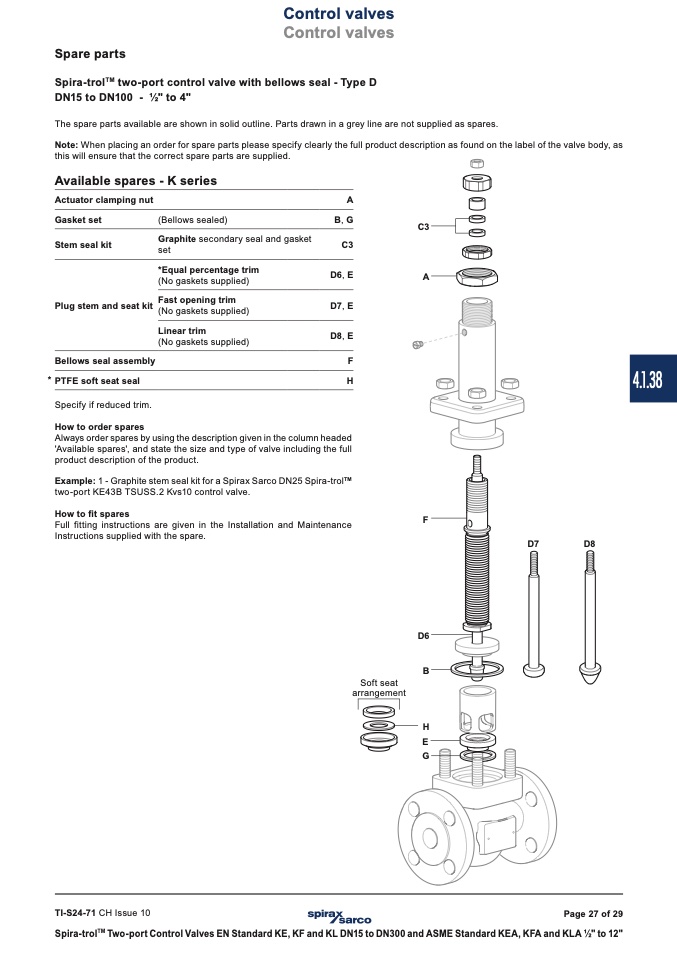

The spare parts available are shown in solid outline. Parts drawn in a grey line are not supplied as spares.

Note: When placing an order for spare parts please specify clearly the full product description as found on the label of the valve body, as

this will ensure that the correct spare parts are supplied.

Available spares - K series

Actuator clamping nut

Gasket set

Stem seal kit

(Bellows sealed)

Graphite secondary seal and gasket

set

A

B, G

C3

D6, E

D7, E

D8, E

F

H

C3

A

*Equal percentage trim

(No gaskets supplied)

TI-S24-71 CH Issue 10

Spira-trol

TM

Two-port Control Valves EN Standard KE, KF and KL DN15 to DN300 and ASME Standard KEA, KFA and KLA 1⁄2" to 12"

Soft seat

arrangement

Page 27 of 29
