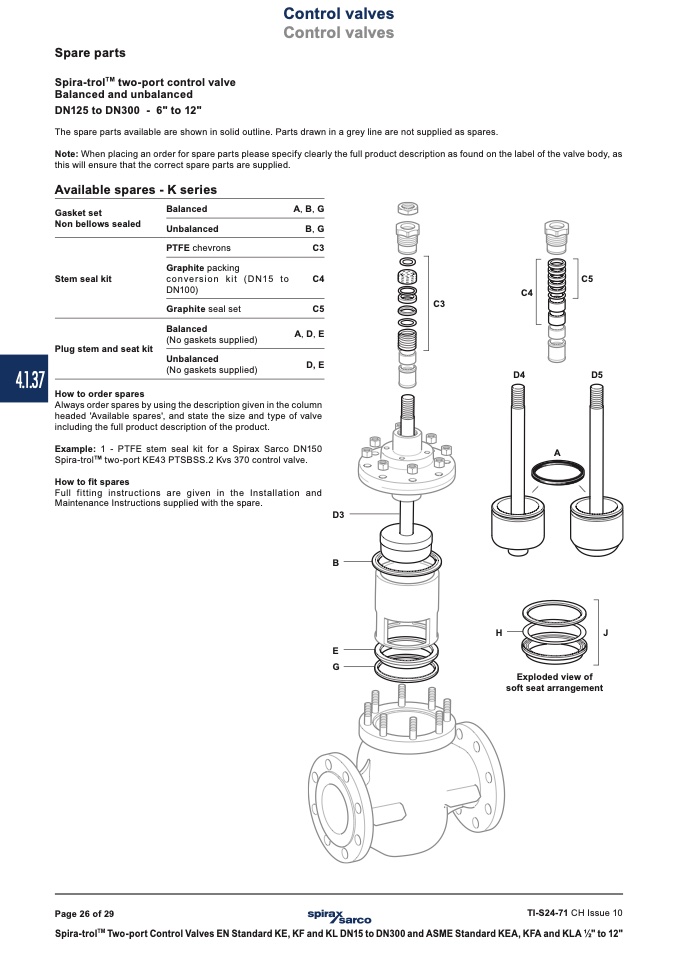

Control valves

Control valves

4.1.37

Spare parts

Spira-trol

TM

two-port control valve

Balanced and unbalanced

DN125 to DN300 - 6" to 12"

The spare parts available are shown in solid outline. Parts drawn in a grey line are not supplied as spares.

Note: When placing an order for spare parts please specify clearly the full product description as found on the label of the valve body, as

this will ensure that the correct spare parts are supplied.

Available spares - K series

Gasket set

Non bellows sealed

Stem seal kit

Balanced

Unbalanced

PTFE chevrons

Graphite packing

conversion kit (DN15 to

DN100)

A, B, G

B, G

C3

C4

C5

A, D, E

D, E

C5

D5

Graphite seal set

Balanced

(No gaskets supplied)

Unbalanced

(No gaskets supplied)

C3

C4

D4

Plug stem and seat kit

How to order spares

Always order spares by using the description given in the column

headed 'Available spares', and state the size and type of valve

including the full product description of the product.

Example: 1 - PTFE stem seal kit for a Spirax Sarco DN150

Spira-trol

TM

two-port KE43 PTSBSS.2 Kvs 370 control valve.

How to fit spares

Full fitting instructions are given in the Installation and

Maintenance Instructions supplied with the spare.

D3

B

E

G

A

H

J

Exploded view of

soft seat arrangement

TI-S24-71 CH Issue 10

Spira-trol

TM

Two-port Control Valves EN Standard KE, KF and KL DN15 to DN300 and ASME Standard KEA, KFA and KLA 1⁄2" to 12"

Page 26 of 29
