Spare parts

A

Spira-trol

TM

two-port control valve with bellows seal - Types B and C

DN15toDN100 - 1⁄2"to4"

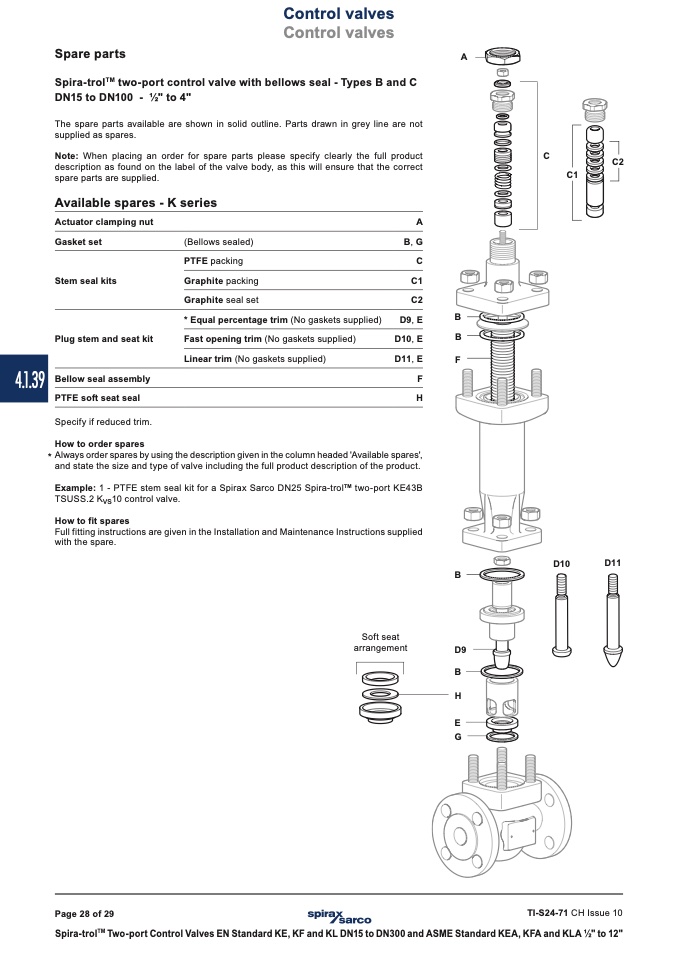

The spare parts available are shown in solid outline. Parts drawn in grey line are not

supplied as spares.

Note: When placing an order for spare parts please specify clearly the full product

description as found on the label of the valve body, as this will ensure that the correct

spare parts are supplied.

C

C2

C1

Available spares - K series

Actuator clamping nut

Gasket set

Stem seal kits

Plug stem and seat kit

4.1.39

Bellow seal assembly

PTFE soft seat seal

Specify if reduced trim.

How to order spares

(Bellows sealed)

PTFE packing

Graphite packing

Graphite seal set

* Equal percentage trim (No gaskets supplied)

Fast opening trim (No gaskets supplied)

Linear trim (No gaskets supplied)

A

B, G

C

C1

C2

D9, E

D10, E

B

B

* Always order spares by using the description given in the column headed 'Available spares',

and state the size and type of valve including the full product description of the product.

Example: 1 - PTFE stem seal kit for a Spirax Sarco DN25 Spira-trol

TM

two-port KE43B

TSUSS.2 Kvs10 control valve.

How to fit spares

Full fitting instructions are given in the Installation and Maintenance Instructions supplied

with the spare.
