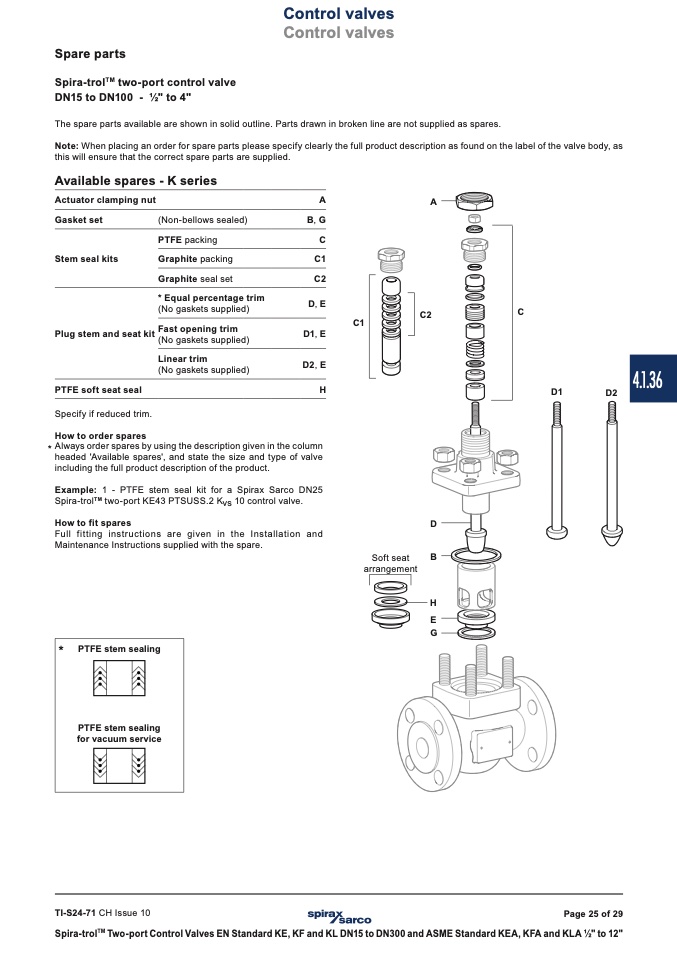

Spare parts

Spira-trol

TM

two-port control valve

DN15toDN100 - 1⁄2"to4"

Plug stem and seat kit

Fast opening trim

PTFE soft seat seal

Specify if reduced trim.

D1

D2

(No gaskets supplied)

Linear trim

(No gaskets supplied)

4.1.36

How to order spares

* Always order spares by using the description given in the column

headed 'Available spares', and state the size and type of valve

including the full product description of the product.

Example: 1 - PTFE stem seal kit for a Spirax Sarco DN25

Spira-trol

TM

two-port KE43 PTSUSS.2 Kvs 10 control valve.

How to fit spares

Full fitting instructions are given in the Installation and

Maintenance Instructions supplied with the spare.

*

D

Soft seat

B

arrangement

H

E

G

PTFE stem sealing

PTFE stem sealing

for vacuum service

Control valves

Control valves

The spare parts available are shown in solid outline. Parts drawn in broken line are not supplied as spares.

Note: When placing an order for spare parts please specify clearly the full product description as found on the label of the valve body, as

this will ensure that the correct spare parts are supplied.

Available spares - K series

Actuator clamping nut

Gasket set

Stem seal kits

(Non-bellows sealed)

PTFE packing

Graphite packing

Graphite seal set

* Equal percentage trim

(No gaskets supplied)

A

B, G

C

C1

C2

D, E

D1, E

D2, E

H

A

C2
