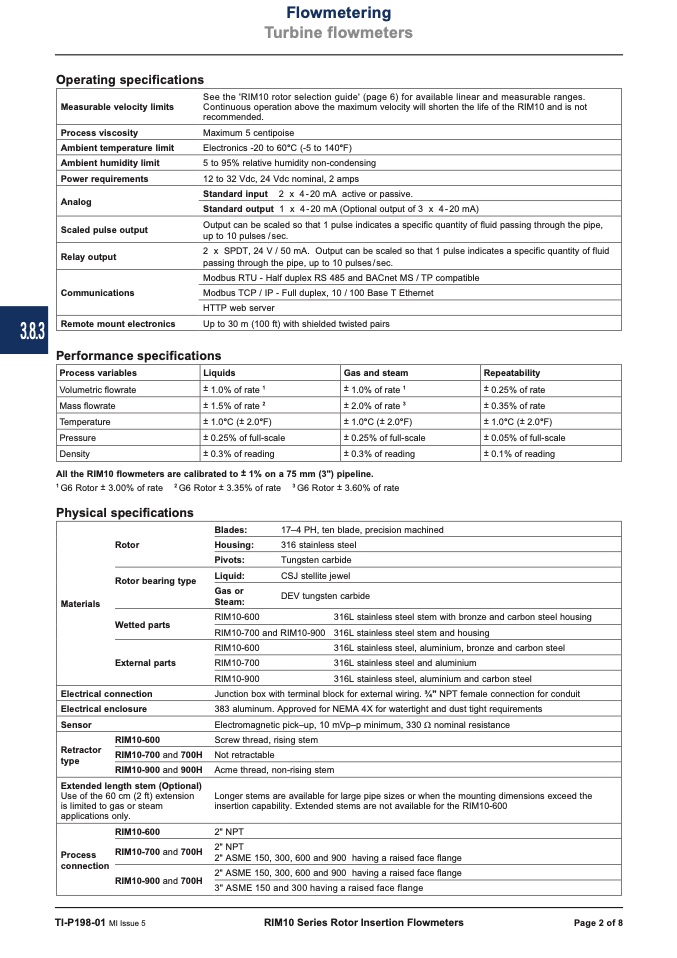

Flowmetering

Turbine flowmeters

See the 'RIM10 rotor selection guide' (page 6) for available linear and measurable ranges.

Measurable velocity limits

Continuous operation above the maximum velocity will shorten the life of the RIM10 and is not

recommended.

Process viscosity

Maximum 5 centipoise

Ambient temperature limit

Electronics -20 to 60°C (-5 to 140°F)

Ambient humidity limit

5 to 95% relative humidity non-condensing

Power requirements

12 to 32 Vdc, 24 Vdc nominal, 2 amps

Analog

Standard input 2 x 4-20 mA active or passive.

Standard output 1 x 4-20 mA (Optional output of 3 x 4-20 mA)

Scaled pulse output

Output can be scaled so that 1 pulse indicates a specific quantity of fluid passing through the pipe,

up to 10 pulses / sec.

Relay output

2 x SPDT, 24 V / 50 mA. Output can be scaled so that 1 pulse indicates a specific quantity of fluid

passing through the pipe, up to 10 pulses/sec.

Modbus RTU - Half duplex RS 485 and BACnet MS / TP compatible

Communications

Modbus TCP / IP - Full duplex, 10 / 100 Base T Ethernet

HTTP web server

Remote mount electronics

Up to 30 m (100 ft) with shielded twisted pairs

3.8.3

Process variables

Liquids

Gas and steam Repeatability

Volumetric flowrate ± 1.0% of rate

1

± 1.0% of rate

1

± 0.25% of rate

Mass flowrate

± 1.5% of rate

2

± 2.0% of rate

3

± 0.35% of rate

Temperature

± 1.0°C (± 2.0°F)

± 1.0°C (± 2.0°F) ± 1.0°C (± 2.0°F)

Pressure ± 0.25% of full-scale ± 0.25% of full-scale ± 0.05% of full-scale

Density

± 0.3% of reading

± 0.3% of reading ± 0.1% of reading

Rotor

Rotor bearing type

Materials

Wetted parts

External parts

Blades:

Housing:

Pivots:

Liquid:

Gas or

Steam:

RIM10-600

RIM10-700

RIM10-600

RIM10-700

RIM10-900

17–4 PH, ten blade, precision machined

316 stainless steel

Tungsten carbide

CSJ stellite jewel

DEV tungsten carbide

316L stainless steel stem with bronze and carbon steel housing

and RIM10-900

316L stainless steel stem and housing

316L stainless steel, aluminium, bronze and carbon steel

316L stainless steel and aluminium

316L stainless steel, aluminium and carbon steel

Electrical connection

Junction box with terminal block for external wiring. 3⁄4" NPT female connection for conduit

Electrical enclosure

383 aluminum. Approved for NEMA 4X for watertight and dust tight requirements

Sensor

Electromagnetic pick–up, 10 mVp–p minimum, 330 Ω nominal resistance

Retractor

type

RIM10-600

RIM10-700 and 700H

RIM10-900 and 900H

Screw thread, rising stem

Not retractable

Acme thread, non-rising stem

Extended length stem (Optional)

Use of the 60 cm (2 ft) extension

Longer stems are available for large pipe sizes or when the mounting dimensions exceed the

is limited to gas or steam

insertion capability. Extended stems are not available for the RIM10-600

applications only.

RIM10-600

Process

RIM10-700 and 700H

connection

RIM10-900 and 700H

2" NPT

2" NPT

2" ASME 150, 300, 600 and 900 having a raised face flange

2" ASME 150, 300, 600 and 900 having a raised face flange

3" ASME 150 and 300 having a raised face flange

Operating specifications

Performance specifications

All the RIM10 flowmeters are calibrated to ± 1% on a 75 mm (3") pipeline.

1

G6 Rotor ± 3.00% of rate

2

G6 Rotor ± 3.35% of rate

3

G6 Rotor ± 3.60% of rate

Physical specifications

TI-P198-01 MI Issue 5

RIM10 Series Rotor Insertion Flowmeters

Page 2 of 8
