Flowmetering
Turbine flowmeters
Local regulations may restrict the use of this product to below the conditions quoted.
In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
© Copyright 2014

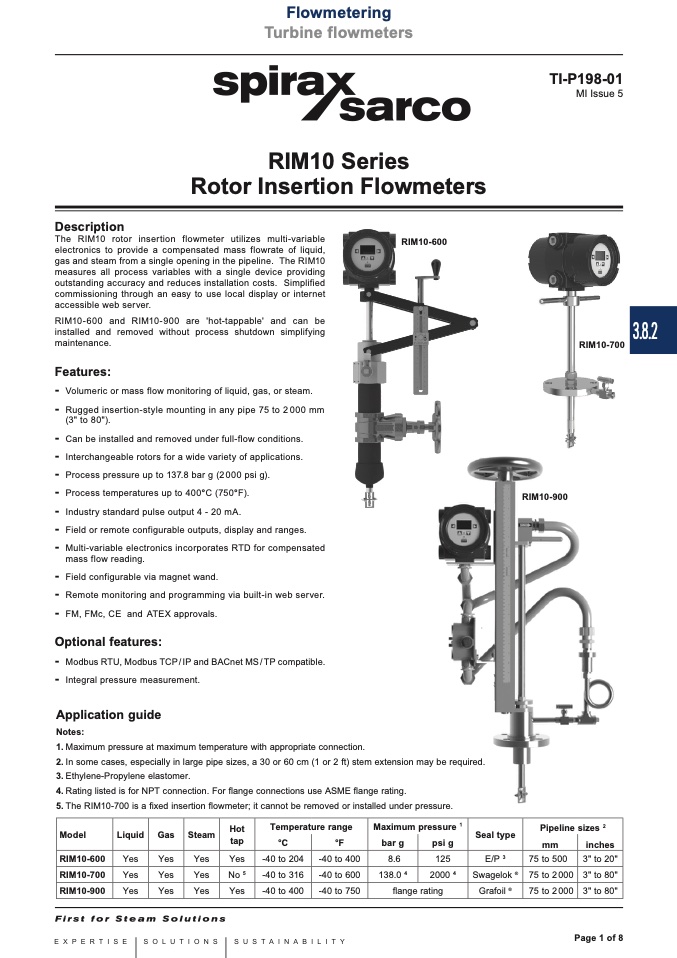

RIM10 Series
Rotor Insertion Flowmeters
TI-P198-01
MI Issue 5
RIM10-700
RIM10-900
Description
The RIM10 rotor insertion flowmeter utilizes multi-variable
electronics to provide a compensated mass flowrate of liquid,
gas and steam from a single opening in the pipeline. The RIM10
measures all process variables with a single device providing
outstanding accuracy and reduces installation costs. Simplified
commissioning through an easy to use local display or internet
accessible web server.
RIM10-600 and RIM10-900 are 'hot-tappable' and can be
installed and removed without process shutdown simplifying
maintenance.
Features:
-
Volumeric or mass flow monitoring of liquid, gas, or steam.
-
Rugged insertion-style mounting in any pipe 75 to 2000 mm
(3" to 80").
-
Can be installed and removed under full-flow conditions.
-
Interchangeable rotors for a wide variety of applications.
-
Process pressure up to 137.8 bar g (2000 psi g).
-
Process temperatures up to 400°C (750°F).
-
Industry standard pulse output 4 - 20 mA.
-
Field or remote configurable outputs, display and ranges.
-
Multi-variable electronics incorporates RTD for compensated
mass flow reading.
-
Field configurable via magnet wand.
-
Remote monitoring and programming via built-in web server.
-
FM, FMc, CE and ATEX approvals.
Optional features:
-
Modbus RTU, Modbus TCP / IP and BACnet MS / TP compatible.
-
Integral pressure measurement.
RIM10-600
Application guide
Notes:
1. Maximum pressure at maximum temperature with appropriate connection.
2. In some cases, especially in large pipe sizes, a 30 or 60 cm (1 or 2 ft) stem extension may be required.
3. Ethylene-Propylene elastomer.
4. Rating listed is for NPT connection. For flange connections use ASME flange rating.
5. The RIM10-700 is a fixed insertion flowmeter; it cannot be removed or installed under pressure.
Model
Liquid Gas Steam
Hot
tap
Temperature range
°C
°F
Maximum pressure
1
bar g
psi g
Seal type
Pipeline sizes
2
mm
inches
RIM10-600
Yes Yes Yes Yes -40 to 204
-40 to 400
8.6 125 E/P
3
75 to 500
3" to 20"
RIM10-700 Yes Yes Yes No
5
-40 to 316
-40 to 600 138.0
4
2000
4
Swagelok
®
75 to 2000 3" to 80"
RIM10-900
Yes Yes Yes Yes -40 to 400 -40 to 750
flange rating
Grafoil
®
75 to 2000
3" to 80"
Page 1 of 8
3.8.2
