Flowmetering

Flowmetering ancillaries

Product range

EL2270*

Standard

Miniature

Quick repsonse and

duplex quick response

EL2271

A

88

58

88

88

B

130

62

150

130

C

75

63

75

75

D

25, 50, 75,125, 225, 725

39

40

25, 50, 75, 125

E

6

6

4.5

6

Product range

Standard

Fabricated

Solid drilled

Hygenic

11⁄2" sanitary clamp connector

Fabricated

F 200, 700 25, 50, 100 25, 50, 100, 200

3.5.15

B

C

F

D

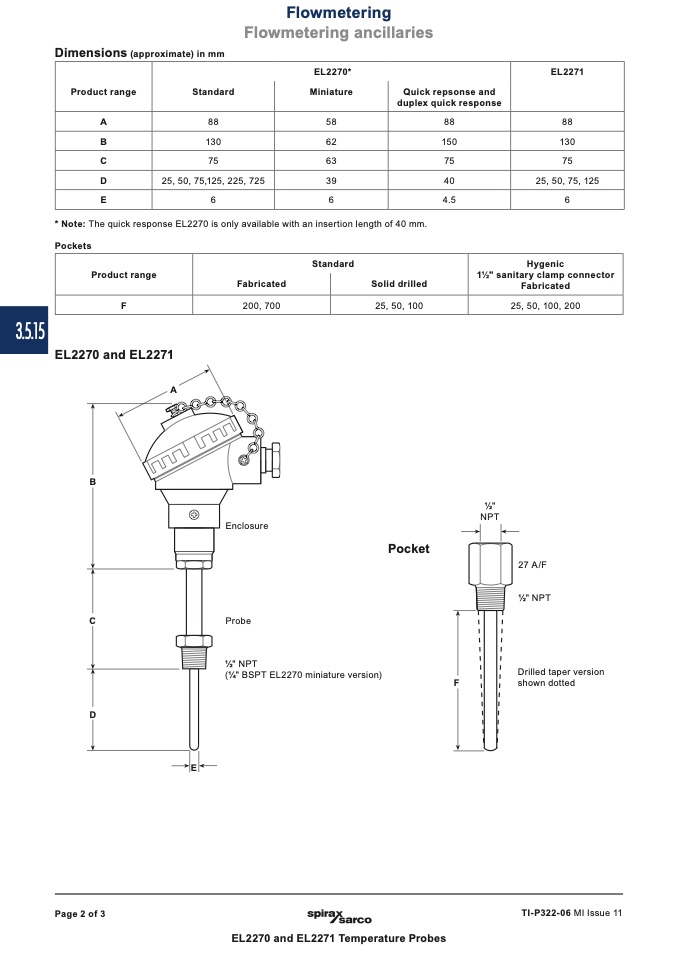

Dimensions (approximate) in mm

* Note: The quick response EL2270 is only available with an insertion length of 40 mm.

Pockets

EL2270 and EL2271

A

Enclosure

Probe

1⁄2" NPT

Pocket

1⁄2"

NPT

27 A/F

1⁄2" NPT

Drilled taper version

shown dotted

(1⁄4" BSPT EL2270 miniature version)

E

Page 2 of 3

TI-P322-06 MI Issue 11

EL2270 and EL2271 Temperature Probes
