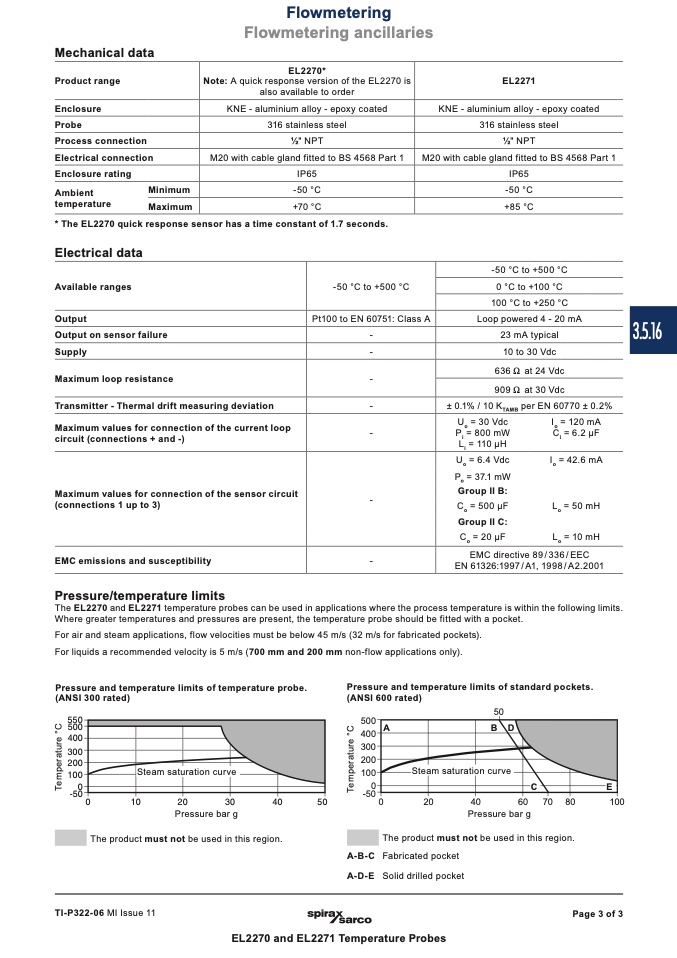

Mechanical data
Product range
Enclosure
Probe
Process connection
Electrical connection
EL2271
Flowmetering
Flowmetering ancillaries
EL2270*
Note: A quick response version of the EL2270 is
also available to order
KNE - aluminium alloy - epoxy coated
316 stainless steel
1⁄2" NPT
M20 with cable gland fitted to BS 4568 Part 1
IP65
-50 °C
+70 °C
Enclosure rating
Ambient
temperature
Minimum
Maximum
KNE - aluminium alloy - epoxy coated
316 stainless steel
1⁄2" NPT
M20 with cable gland fitted to BS 4568 Part 1
IP65
-50 °C
+85 °C
-50 °C to +500 °C
0 °C to +100 °C
100 °C to +250 °C
Loop powered 4 - 20 mA
23 mA typical
10 to 30 Vdc
636 at 24 Vdc
909 at 30 Vdc
± 0.1% / 10 K
TAMB
per EN 60770 ± 0.2%
* The EL2270 quick response sensor has a time constant of 1.7 seconds.
Electrical data
Available ranges
Output
Output on sensor failure
Supply
Maximum loop resistance
Transmitter - Thermal drift measuring deviation
Maximum values for connection of the current loop
circuit (connections + and -)
Maximum values for connection of the sensor circuit
(connections1upto3)
EMC emissions and susceptibility
U
o
=30Vdc
P
i
=800mW
L
i
= 110 μH
U
o
=6.4Vdc
P
o
= 37.1 mW
Group II B:
C
o
=500μF
Group II C:
C
o
=20μF
I
o
=120mA
C
i
=6.2μF
I
o
=42.6mA
L
o
=50mH
L
o
=10mH
-50 °C to +500 °C
Pt100 to EN 60751: Class A
-
-
-
-
-
-
-
EMC directive 89 / 336 / EEC
EN 61326:1997 / A1, 1998 / A2.2001
Pressure/temperature limits
The EL2270 and EL2271 temperature probes can be used in applications where the process temperature is within the following limits.
Where greater temperatures and pressures are present, the temperature probe should be fitted with a pocket.
For air and steam applications, flow velocities must be below 45 m/s (32 m/s for fabricated pockets).
For liquids a recommended velocity is 5 m/s (700 mm and 200 mm non-flow applications only).
Pressure and temperature limits of temperature probe.
(ANSI 300 rated)
Pressure and temperature limits of standard pockets.
(ANSI 600 rated)
������
������
������
������
������
������
����
��
��
��
����
����
����
����
����
Pressure bar g
The product must not be used in this region.
������
������
������
������
������
������
��
A-B-C
A-D-E
����
��
����
����
���
�
���
�
����
������
Pressure bar g
The product must not be used in this region.
Fabricated pocket
Solid drilled pocket
A
Steam saturation curve
3.5.16
Steam saturation curve
C
TI-P322-06 MI Issue 11
Page 3 of 3
EL2270 and EL2271 Temperature Probes
B
D
E
T
e
m
p
e
r
a
t
u
r
e
°
C
T
e
m
p
e
r
a
t
u
r
e
°
C
