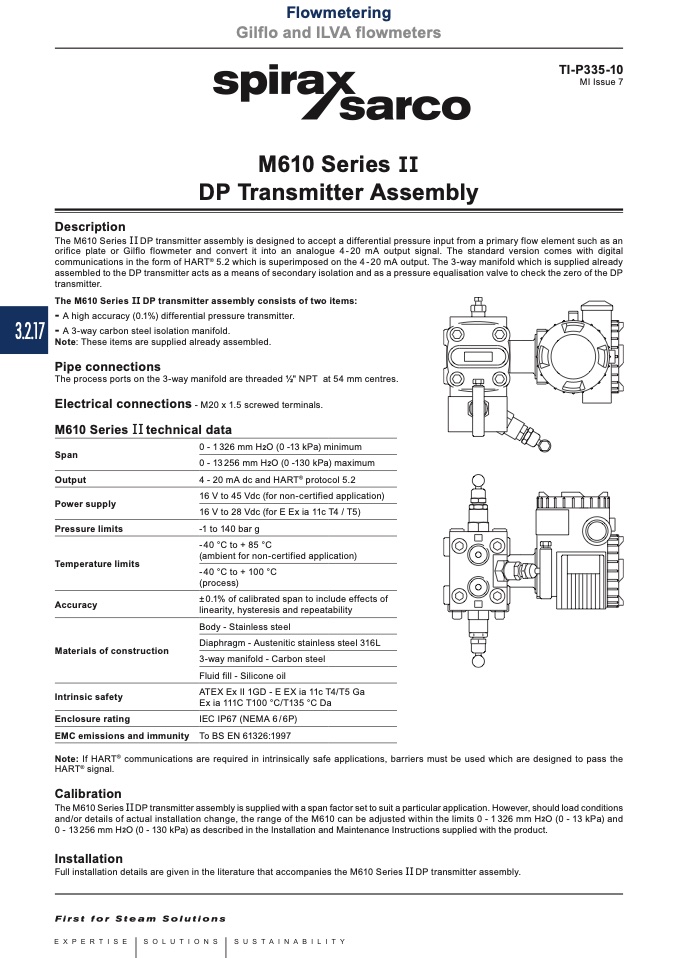

Description

Flowmetering

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

Gilflo and ILVA flowmeters

© Copyright 2016

M610 Series II

DP Transmitter Assembly

The M610 Series II DP transmitter assembly is designed to accept a differential pressure input from a primary flow element such as an

orifice plate or Gilflo flowmeter and convert it into an analogue 4-20 mA output signal. The standard version comes with digital

communications in the form of HART

®

5.2 which is superimposed on the 4-20 mA output. The 3-way manifold which is supplied already

assembled to the DP transmitter acts as a means of secondary isolation and as a pressure equalisation valve to check the zero of the DP

transmitter.

The M610 Series II DP transmitter assembly consists of two items:

3.2.17

-

A high accuracy (0.1%) differential pressure transmitter.

-

A 3-way carbon steel isolation manifold.

Note: These items are supplied already assembled.

Pipe connections

The process ports on the 3-way manifold are threaded 1⁄2" NPT at 54 mm centres.

Electrical connections

- M20 x 1.5 screwed terminals.

M610 Series II technical data

Span

Output

Power supply

Pressure limits

Temperature limits

Accuracy

Materials of construction

Intrinsic safety

Enclosure rating

EMC emissions and immunity

0 - 1326 mm H2O (0 -13 kPa) minimum

0 - 13256 mm H2O (0 -130 kPa) maximum

4 - 20 mA dc and HART

®

protocol 5.2

16 V to 45 Vdc (for non-certified application)

16 V to 28 Vdc (for E Ex ia 11c T4 / T5)

-1to140barg

-40 °C to + 85 °C

(ambient for non-certified application)

-40 °C to + 100 °C

(process)

±0.1% of calibrated span to include effects of

linearity, hysteresis and repeatability

Body - Stainless steel

Diaphragm - Austenitic stainless steel 316L

3-way manifold - Carbon steel

Fluid fill - Silicone oil

ATEX Ex II 1GD - E EX ia 11c T4/T5 Ga

Ex ia 111C T100 °C/T135 °C Da

IEC IP67 (NEMA 6 / 6P)

To BS EN 61326:1997

Note: If HART

®

communications are required in intrinsically safe applications, barriers must be used which are designed to pass the

HART

®

signal.

Calibration

The M610 Series IIDP transmitter assembly is supplied with a span factor set to suit a particular application. However, should load conditions

and/or details of actual installation change, the range of the M610 can be adjusted within the limits 0 - 1 326 mm H2O (0 - 13 kPa) and

0 - 13256 mm H2O (0 - 130 kPa) as described in the Installation and Maintenance Instructions supplied with the product.

Installation

Full installation details are given in the literature that accompanies the M610 Series II DP transmitter assembly.

TI-P335-10

MI Issue 7
