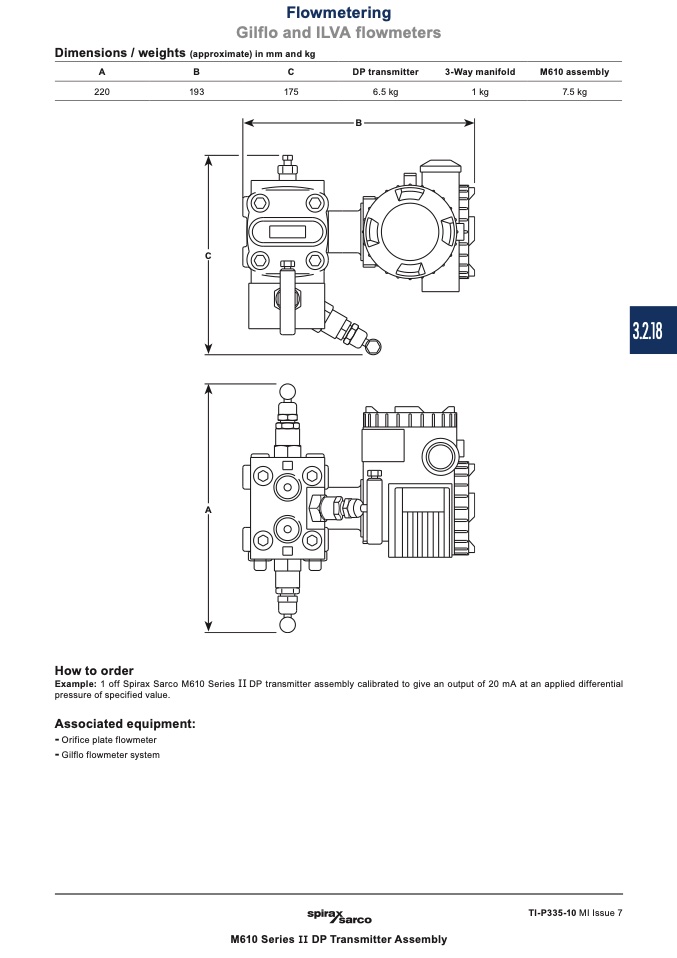

Dimensions / weights (approximate) in mm and kg

Flowmetering

Gilflo and ILVA flowmeters

A

B

220

193

C

175

DP transmitter

6.5 kg

3-Way manifold

1 kg

M610 assembly

7.5 kg

B

C

3.2.18

A

How to order

Example: 1 off Spirax Sarco M610 Series II DP transmitter assembly calibrated to give an output of 20 mA at an applied differential

pressure of specified value.

Associated equipment:

-

Orifice plate flowmeter

-

Gilflo flowmeter system

TI-P335-10 MI Issue 7

M610 Series II DP Transmitter Assembly
