General information

Useful calculation data

���

�

�

�

�

�

�

��

��

��

��

��

��

��

��

��

��

��

���

���

���

���

���

���

� ���

� ���

� ���

� ���

� ���

� ���

�� ���

�� ���

�� ���

�� ���

�� ���

�� ���

��� ���

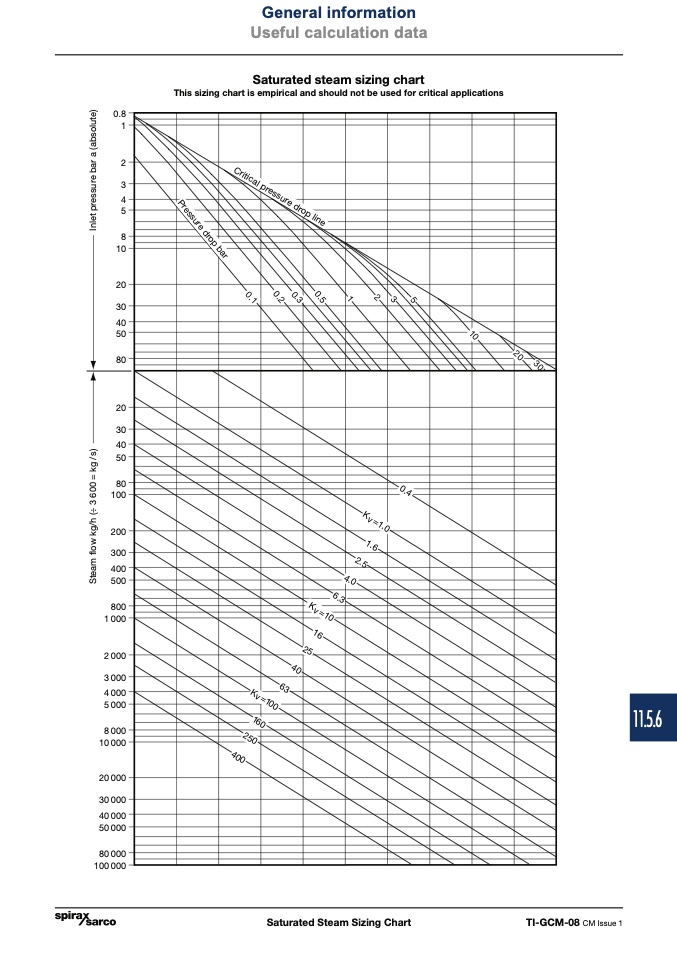

Saturated steam sizing chart

This sizing chart is empirical and should not be used for critical applications

Saturated Steam Sizing Chart
