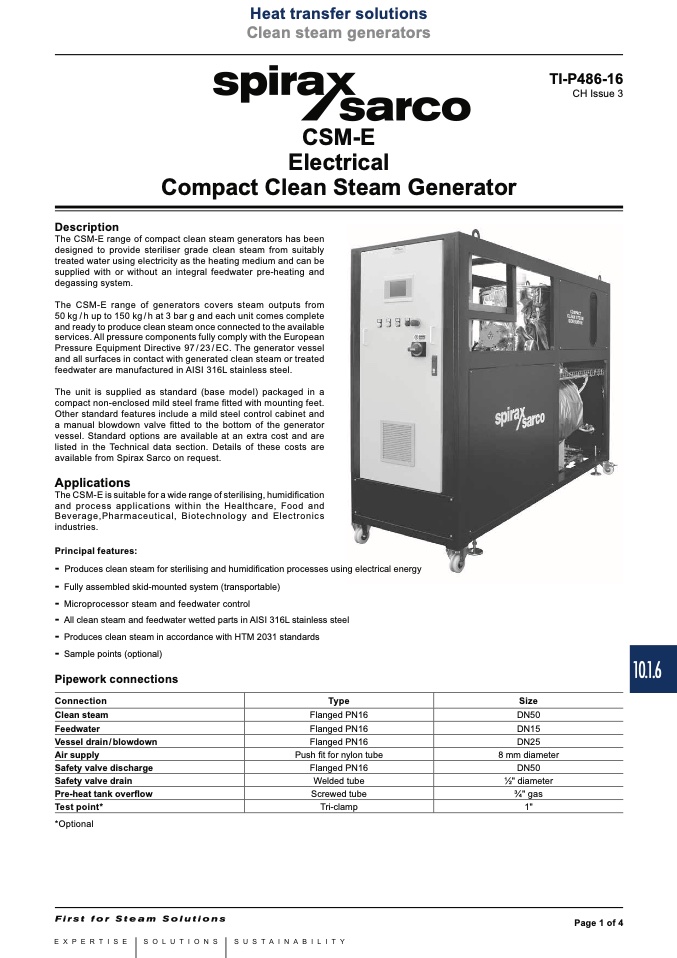

Heat transfer solutions
Clean steam generators
Local regulations may restrict the use of this product to below the conditions quoted.
In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
© Copyright 2012
TI-P486-16
CH Issue 3
CSM-E
Electrical
Compact Clean Steam Generator
Description
The CSM-E range of compact clean steam generators has been
designed to provide steriliser grade clean steam from suitably
treated water using electricity as the heating medium and can be
supplied with or without an integral feedwater pre-heating and
degassing system.
The CSM-E range of generators covers steam outputs from
50 kg / h up to 150 kg / h at 3 bar g and each unit comes complete
and ready to produce clean steam once connected to the available
services. All pressure components fully comply with the European
Pressure Equipment Directive 97 / 23 / EC. The generator vessel
and all surfaces in contact with generated clean steam or treated
feedwater are manufactured in AISI 316L stainless steel.
The unit is supplied as standard (base model) packaged in a
compact non-enclosed mild steel frame fitted with mounting feet.
Other standard features include a mild steel control cabinet and
a manual blowdown valve fitted to the bottom of the generator
vessel. Standard options are available at an extra cost and are
listed in the Technical data section. Details of these costs are
available from Spirax Sarco on request.
Applications
The CSM-E is suitable for a wide range of sterilising, humidification
and process applications within the Healthcare, Food and
Beverage,Pharmaceutical, Biotechnology and Electronics
industries.
Principal features:
-
Produces clean steam for sterilising and humidification processes using electrical energy
-
Fully assembled skid-mounted system (transportable)
-
Microprocessor steam and feedwater control
-
All clean steam and feedwater wetted parts in AISI 316L stainless steel
-
Produces clean steam in accordance with HTM 2031 standards
-
Sample points (optional)
Pipework connections
Connection
Clean steam
Feedwater
Vessel drain/blowdown
DN25
Type
Flanged PN16
Flanged PN16
Flanged PN16
Push fit for nylon tube
Flanged PN16
Welded tube
Screwed tube
Tri-clamp
Size
8 mm diameter
DN50
1⁄2" diameter
3⁄4" gas
1"
DN50
DN15
Air supply
Safety valve discharge
Safety valve drain
Pre-heat tank overflow
Test point*
*Optional
