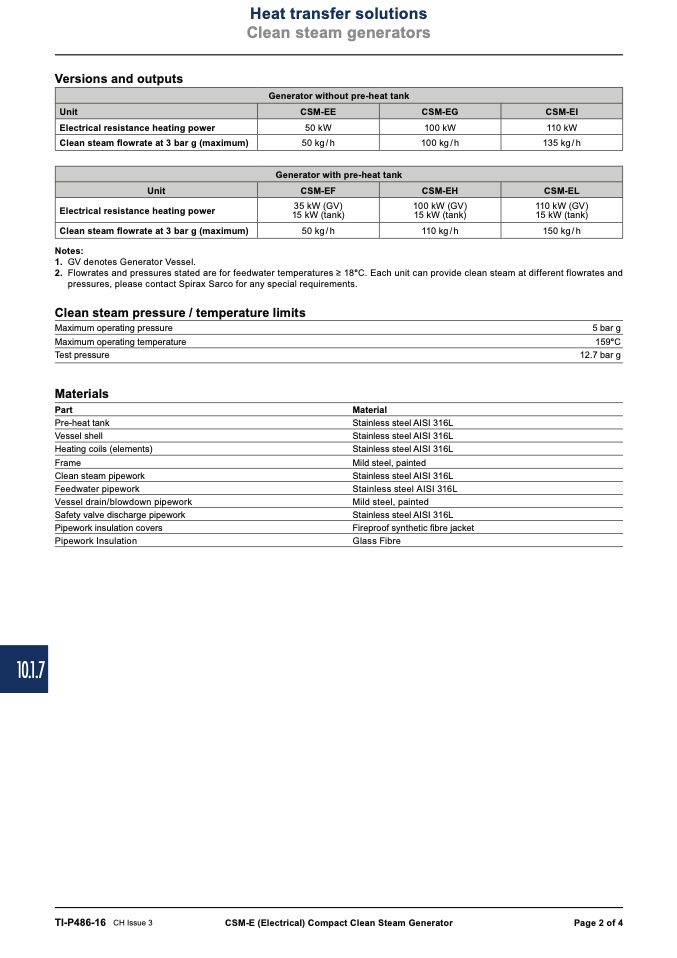

Heat transfer solutions

Clean steam generators

Generator without pre-heat tank

Unit

CSM-EE CSM-EG CSM-EI

Electrical resistance heating power 50 kW 100 kW 110 kW

Clean steam flowrate at 3 bar g (maximum)

50 kg/h 100 kg/h 135 kg/h

Generator with pre-heat tank

Unit

CSM-EF CSM-EH CSM-EL

Electrical resistance heating power

35 kW (GV)

15 kW (tank)

100 kW (GV)

15 kW (tank)

110 kW (GV)

15 kW (tank)

Clean steam flowrate at 3 bar g (maximum)

50 kg/h 110 kg/h 150 kg/h

10.1.7

Versions and outputs

Notes:

1. GV denotes Generator Vessel.

2. Flowrates and pressures stated are for feedwater temperatures ≥ 18°C. Each unit can provide clean steam at different flowrates and

pressures, please contact Spirax Sarco for any special requirements.

Clean steam pressure / temperature limits

Maximum operating pressure

Maximum operating temperature

Test pressure

Materials

Part

Pre-heat tank

Vessel shell

Heating coils (elements)

Frame

Clean steam pipework

Feedwater pipework

Vessel drain/blowdown pipework

Safety valve discharge pipework

Pipework insulation covers

Pipework Insulation

5 bar g

159°C

12.7 bar g

Material

Stainless steel AISI 316L

Stainless steel AISI 316L

Stainless steel AISI 316L

Mild steel, painted

Stainless steel AISI 316L

Stainless steel AISI 316L

Mild steel, painted

Stainless steel AISI 316L

Fireproof synthetic fibre jacket

Glass Fibre

TI-P486-16 CH Issue 3

CSM-E (Electrical) Compact Clean Steam Generator

Page 2 of 4
