Unit

Dimensions (mm)

A

B

C

Weight (kg)

Dry Wet

CSM-CA (without tank)

1880

790

2310

780 1340

CSM-CB (with tank)

1880 790

2310 800 1420

CSM-CC (without tank)

1880

790

2310

800 1400

CSM-CD (with tank)

1880

790

2310

850 1610

10.1.5

Heat transfer solutions

Clean steam generators

Safety information, installation and maintenance

For full details including spares information, refer to the Installation

and Maintenance Instructions supplied with the unit.

Typical specification

Spirax Sarco compact clean steam generator CSM-CD (with pre-heat

tank), designed and built to produce 640 kg/h of clean steam at

3 bar g to HTM 2031 (dependant upon feedwater) when supplied

with plant steam at 9 bar g.

All items are to be pre-assembled and mounted on to a compact

frame and accompanied with PED certification.

How to order

Example: 1 off Spirax Sarco CSM-CD compact clean steam

generator.

Please provide details of primary steam pressure, clean steam

pressure, clean steam flowrate and feedwater system.

Ancillary items (to be used depending on installation):

- Blowdown vessel and system

- Clean steam check valves

- Clean steam isolation valves

- Primary steam isolation valves

- Feedwater isolation valves

- Condensate isolation valves

- Clean steam and primary steam trapsets

For other items that may be required, please contact Spirax Sarco.

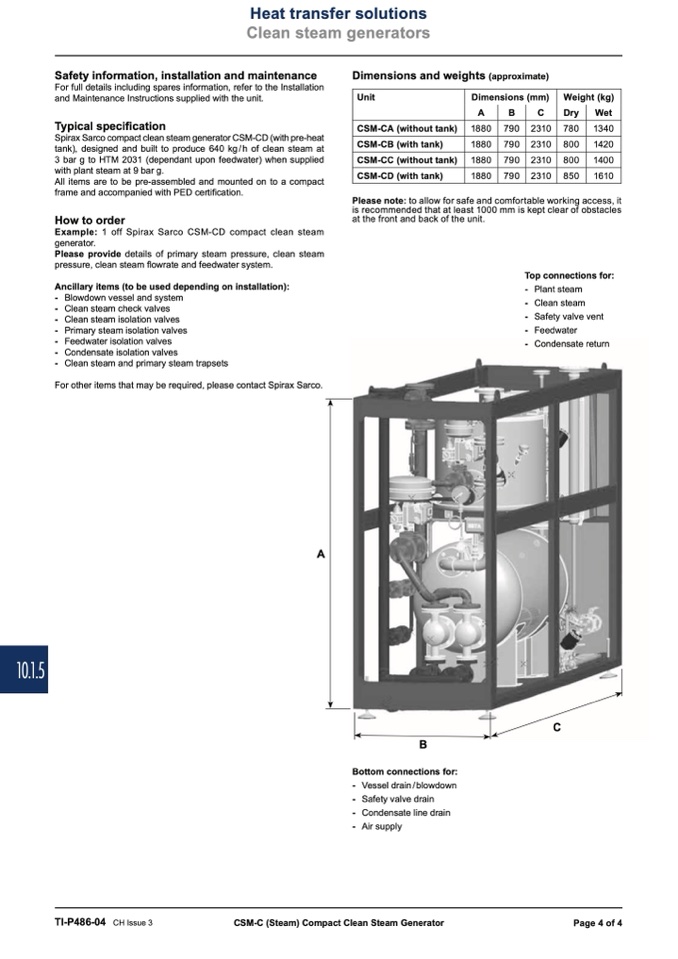

Dimensions and weights (approximate)

Please note: to allow for safe and comfortable working access, it

is recommended that at least 1000 mm is kept clear of obstacles

at the front and back of the unit.

Top connections for:

- Plant steam

- Clean steam

- Safety valve vent

- Feedwater

- Condensate return

A

Bottom connections for:

- Vessel drain/blowdown

- Safety valve drain

- Condensate line drain

- Air supply

B

C

TI-P486-04

CH Issue 3

CSM-C (Steam) Compact Clean Steam Generator

Page 4 of 4
