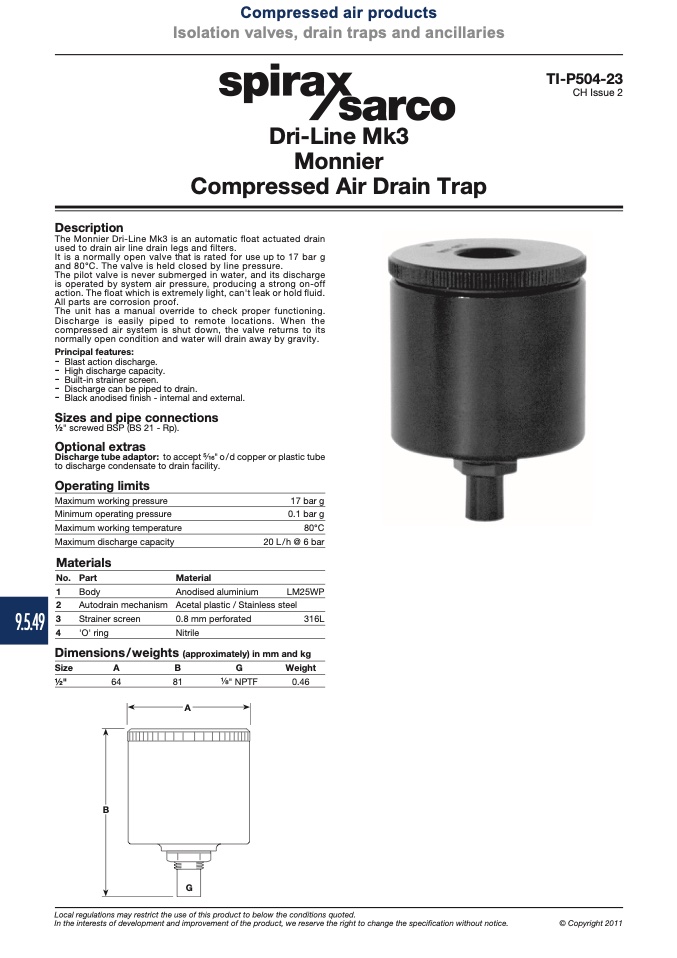

Dri-Line Mk3

Monnier

Compressed Air Drain Trap

Description

The Monnier Dri-Line Mk3 is an automatic float actuated drain

used to drain air line drain legs and filters.

It is a normally open valve that is rated for use up to 17 bar g

and 80°C. The valve is held closed by line pressure.

The pilot valve is never submerged in water, and its discharge

is operated by system air pressure, producing a strong on-off

action. The float which is extremely light, can't leak or hold fluid.

All parts are corrosion proof.

The unit has a manual override to check proper functioning.

Discharge is easily piped to remote locations. When the

compressed air system is shut down, the valve returns to its

normally open condition and water will drain away by gravity.

Sizes and pipe connections

1⁄2" screwed BSP (BS 21 - Rp).

Optional extras

Discharge tube adaptor: to accept " o / d copper or plastic tube

to discharge condensate to drain facility.

Principal features:

- Blast action discharge.

- High discharge capacity.

- Built-in strainer screen.

- Discharge can be piped to drain.

- Black anodised finish - internal and external.

Operating limits

Maximum working pressure

Minimum operating pressure

Maximum working temperature

Maximum discharge capacity

17 bar g

0.1 bar g

80°C

20 L/h @ 6 bar

Materials

No. Part

1

Body

2

Autodrain mechanism

3

Strainer screen

4

'O' ring

Dimensions/weights (approximately) in mm and kg

Material

Anodised aluminium

Acetal plastic / Stainless steel

0.8 mm perforated

316L

Nitrile

LM25WP

Size

1⁄2"

A

B

64

81

G

Weight

" NPTF

0.46

A

B
