Cert. No. LRQ 0963008

ISO 9001

ADV

Spirax-Monnier

Automatic Drain Valve

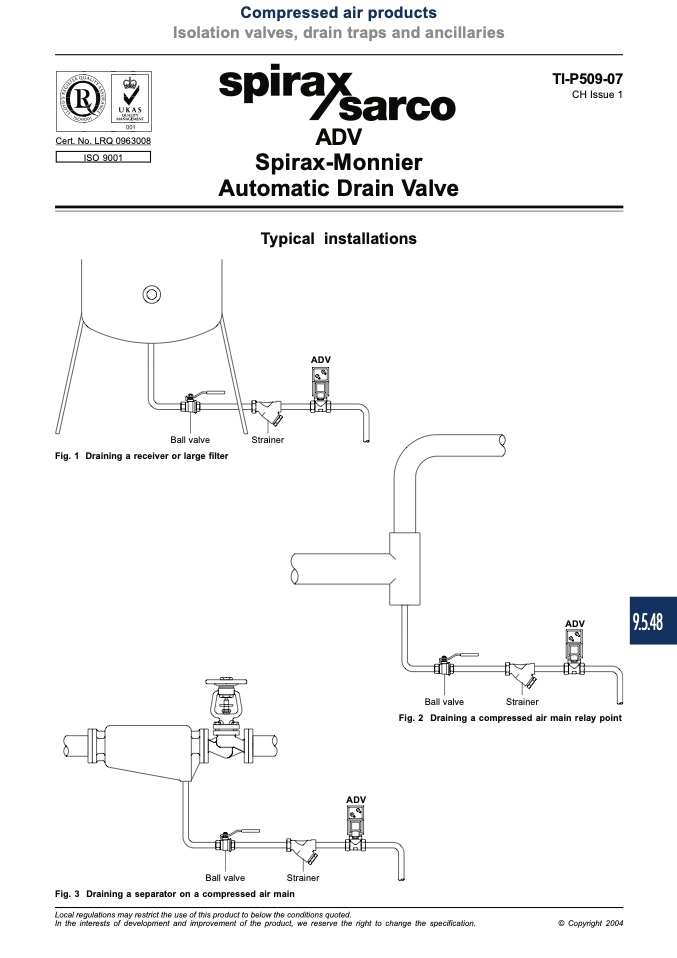

Typical installations

ADV

Fig. 1 Draining a receiver or large filter

Compressed air products

Isolation valves, drain traps and ancillaries

Ball valve

Strainer

Fig. 3 Draining a separator on a compressed air main

Ball valve

Strainer

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification.

© Copyright 2004

ADV

Ball valve

Strainer

Fig. 2 Draining a compressed air main relay point

TI-P509-07

CH Issue 1

ADV

9.5.48
