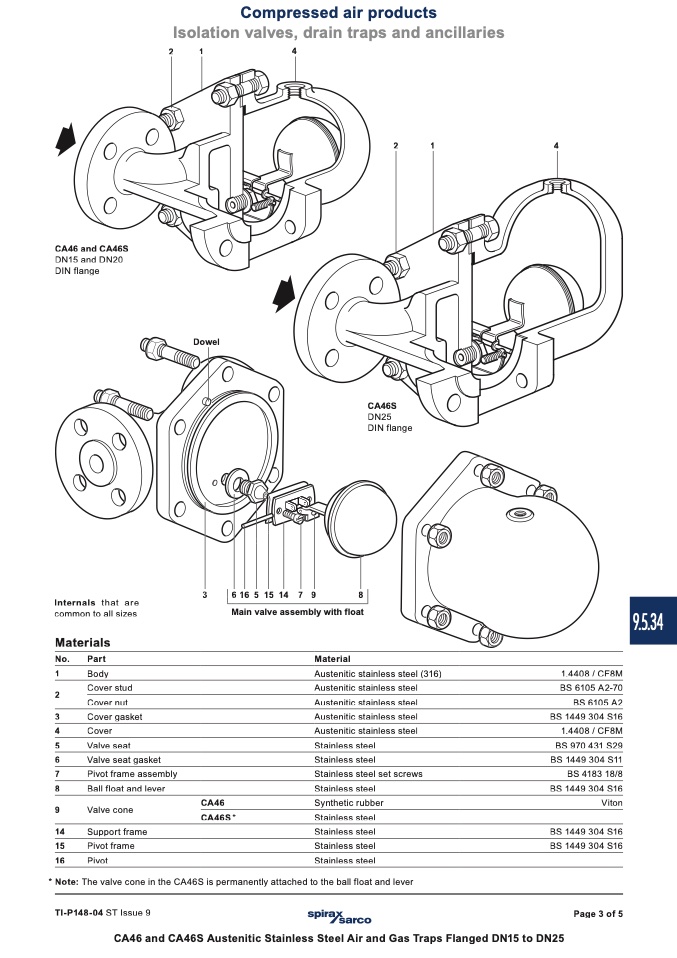

CA46 and CA46S

DN15 and DN20

DIN flange

Internals that are

common to all sizes

Materials

No.

Part

1

Body

3

61651514 7 9

8

Main valve assembly with float

2

Cover stud

Cover nut

3

Cover gasket

4

Cover

5

Valve seat

6

Valve seat gasket

7

Pivot frame assembly

8

Ball float and lever

9

Valve cone

14

Support frame

15

Pivot frame

16

Pivot

CA46

CA46S *

Stainless steel

Stainless steel set screws

Stainless steel

Synthetic rubber

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Compressed air products

Isolation valves, drain traps and ancillaries

2

1

4

Dowel

* Note: The valve cone in the CA46S is permanently attached to the ball float and lever

TI-P148-04 ST Issue 9

CA46 and CA46S Austenitic Stainless Steel Air and Gas Traps Flanged DN15 to DN25

Page 3 of 5

Material

Austenitic stainless steel

Austenitic stainless steel

Austenitic stainless steel

Austenitic stainless steel

Austenitic stainless steel

Stainless steel

(316)

1.4408 / CF8M

BS 6105 A2-70

BS 6105 A2

BS 1449 304 S16

1.4408 / CF8M

BS 970 431 S29

BS 1449 304 S11

BS 4183 18/8

BS 1449 304 S16

Viton

BS 1449 304 S16

BS 1449 304 S16

CA46S

DN25

DIN flange

2

1

4

9.5.34
